One of the most common questions we hear in our classes and from printers at every level regarding screens is: what mesh tension is considered too low? At what point do you need to take a screen out of inventory and either throw it away, send it out to be restretched, or replace it?
The answer is more complex than just a single number, but understanding it is critical because tension has an intrinsic tie with your off-contact, the level of detail you can achieve, and your overall print expectations. This blog breaks down what happens with your screen during the print process and why a Screen Tension Meter is the backbone of a high-performing shop.
What is Screen Tension and Why Does It Matter?
Tension refers to how tight the silkscreen mesh is stretched across your frame. When you pull a squeegee across your image, you apply pressure to that mesh. If the tension is low, the mesh wants to move and distort under that pressure. This movement is known as mesh shift.
Over a short distance, you might not notice much movement. But over a longer distance or with high-detail work like halftones, that shift causes blurriness in your print. Instead of a clean ink deposit, the dot or fine line shifts as the mesh moves with the squeegee. You will also notice ink buildup on the back of your screen, which is a direct result of low tension.
RELATED: What’s the Deal with Red Glue? Why Premium Frames Make a Big Difference

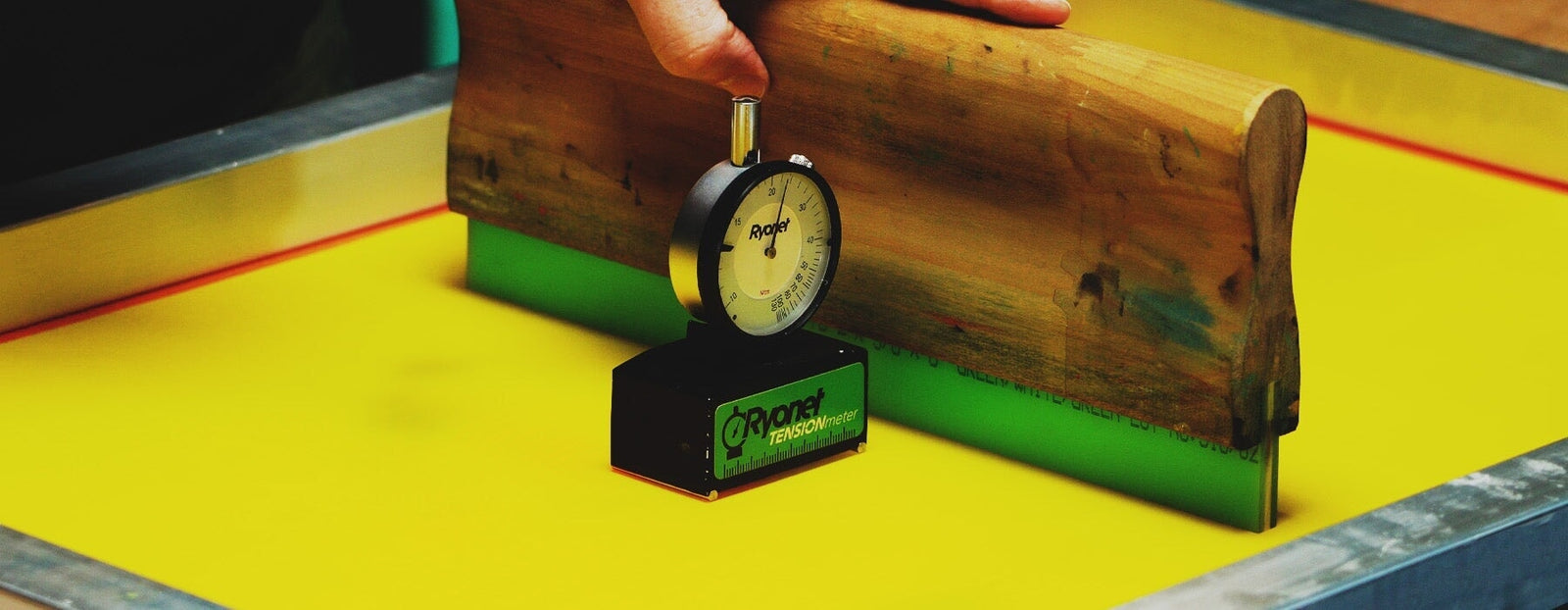

How to Use a Screen Tension Meter
Investing in a Screen Tension Meter moves your shop from guessing to knowing. It is a precision instrument designed to provide accurate and consistent measurements of mesh tightness. To get the best results when measuring your screens, follow these steps:
- Prepare the Surface: Place your screen on a flat, even surface. Measurement accuracy can be affected if the frame is not stable.
- Calibrate the Meter: Most meters include a calibration glass or plate. Before starting, place the meter on this plate to ensure it reads zero or the specified calibration value.
- Positioning: Place the meter in the center of the screen mesh. The meter measures the deflection of the mesh under a known weight to calculate the tension in Newtons per centimeter (N/cm).
- Take Multiple Readings: For the most accurate view of your screen’s health, measure in both directions—widthwise and lengthwise. You may also want to take readings in the corners to check for uneven tension.
- Orientation Matters: When checking tension, face the dial or display toward you so you can read the number clearly without moving the device.
Knowing When to Replace Your Screens
Every time you pull a squeegee or reclaim a screen using a pressure washer, you drop a little bit of tension. The knuckles of the mesh release stored tension every time pressure is applied to them, much like massaging a knot out of a muscle. For standard static aluminum screen printing frames, here is what we recommend:
- Under 20 Newtons: If a high-mesh screen (like a 305) hits 18 or 19 Newtons on your Screen Tension Meter, it is time to look at a new screen. At this level, it is really only good for single-color prints where detail isn't critical.
- The "Line Up" Test: If you are printing a multi-color job and your colors line up on one end but not the other, your mesh is likely distorting and elongating due to low tension.
- Optimal Performance: Ideally, you want your screens at 25 Newtons or higher. Tighter mesh allows you to drop your off-contact lower to the shirt, meaning you don’t have to use as much pressure and can pull your squeegee faster.
RELATED: HOW MANY SCREENS DOES MY SHOP REALLY NEED?
Different Frames and Their Tension Profiles
The type of equipment or supplies you use changes how you manage tension:
- Static Aluminum Frames: These are the family sedans of the industry: dependable and standard. However, once they are stretched, the mesh will only ever relax. These frames will need to be recycled and replaced over time.
- Baselayr Premium Frames: These frames are built for high performance, featuring a specialized red glue that ensures extended high tension stability and durability for rigorous shop environments. Hand-welded in the USA, they offer a thicker 1.5-inch profile for maximum stability.
- Eco HD Frames: These are click-frame varieties that allow you to replace mesh panels easily. When you first stretch an Eco HD Lite Frame, you might see tension as high as 38 Newtons. It will settle over the first 12 to 24 hours, but the advantage is being able to swap in a fresh, tight panel whenever performance drops.
- Roller Frames: Think of these like supercars. Roller frames allow you to re-tension your screen mesh whenever you want. If the tension drops past a point you don’t like, you simply roll the bars to increase the tension level again.
Checking Tension Without a Meter
If you haven't invested in a Screen Tension Meter yet, you can use a "sound check" as a temporary guide. Tap the mesh and listen to the pitch:
- Low Tension: Sounds like a bass drum.
- High Tension: Sounds more like a snare drum.
While the sound check can tell you the general difference between 19 and 30 Newtons, a meter is necessary for the precision required in production-level apparel printing.
RELATED: 3 DARKROOM TIPS FROM PRO SCREEN PRINTERS
Your Screen Is The Backbone of Your Shop
Screen tension only becomes a major pain point when your prints aren’t performing the way you want. If you find yourself having to increase your off-contact to an eighth of an inch or more just to get a clean clear, it is time to figure out your tension levels.
The screen is the backbone of everything we do in our industry. Whether you are using plastisol inks or water based inks, having tight, consistent screens ensures that your registration holds and your prints stay sharp. Ready to stop guessing and start measuring? Invest in the right tools to keep your production moving forward.
