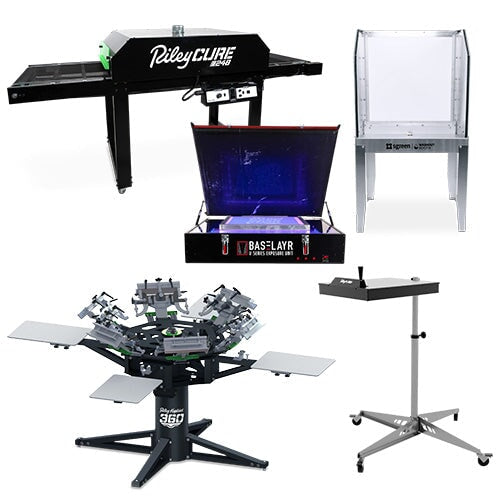

Riley Hopkins 360 Equipment Only Screen Printing Shop Kit

ScreenPrinting.com  |  SKU: PKPO-RILEY360EQ
sale--v3
SAVE ON PACKAGES
Limited Time Savings on Screen Printing Packages
combo-chart--v2
GROW YOUR BUSINESS
Start today with No Payments for 90 days on select equipment and packages.
checked
PRICE MATCH GUARANTEE
Find a lower price before or within 30 days of purchase and we will match it or credit the difference.
$14,49995 $15,68430
Flat rate
multi-qty message
In stock

Start your screen printing business with the right equipment. The Riley Hopkins® 360 Equipment Only Screen Printing Kit offers the bare essentials from industry leaders like Riley Hopkins®, Sgreen®, and Baselayr®. You will jumpstart your new career with professional equipment, generating professional, high-quality results. Securing top-notch equipment means you have the freedom to choose other screen printing supplies like inks, squeegees, screens, emulsions, and more.

Investing in a shop package is an easy, economical way to start up or upgrade a screen printing business. Jumpstart your print shop today with the Riley Hopkins® 360 Equipment Only Screen Printing Kit.

INCLUDED IN KIT

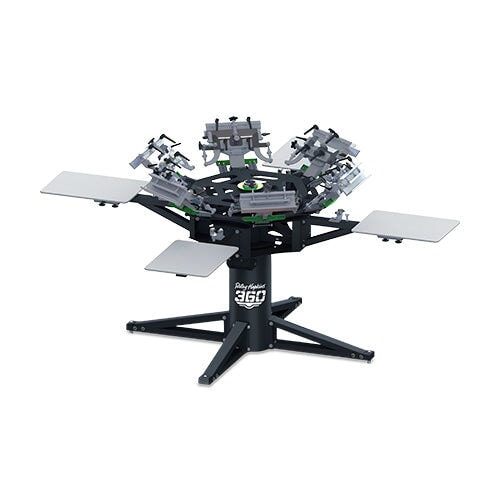

PRESS FEATURES AND SPECS
  • Sturdy, heavy-duty construction
  • XYZ: Micro registration
  • Adjustable Height Mechanism
  • 4-Point Roller Gate
  • Lifetime Limited Warranty
  • Made in USA 🇺🇸
  • Diameter: 100"
  • Base Size: 60"
  • Platen Height: 35" - 36"
  • Max Platen Size: 30" x 32"
  • Max Frame Size (Back Clamp): 25" x 36"
  • Max Frame Size (Side Clamp): 23" x 32"
  • Color/ Stations: 6 color / 4 station
  • Shipping Weight: 602 lbs

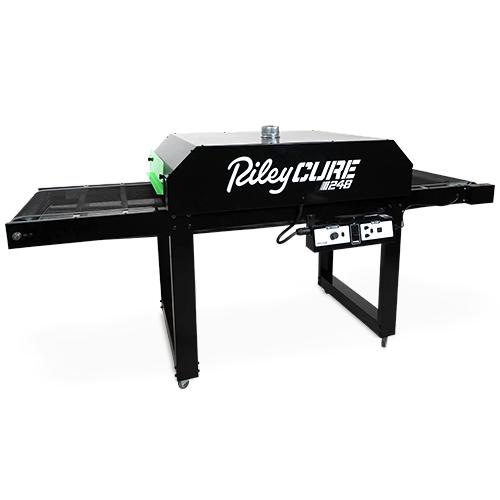

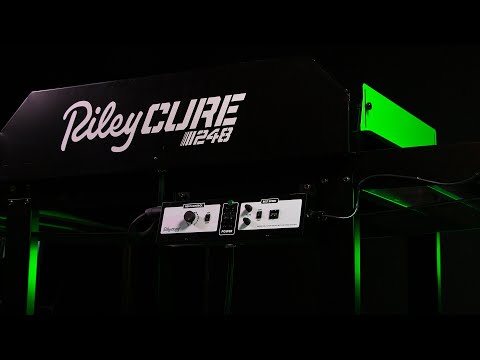

    CONVEYOR DRYER FEATURES AND SPECS
    • Dual Infrared Heating Elements
    • Digital Temperature Control
    • Adjustable Belt Speed
    • Adjustable Airflow Gates
    • Quick-Knob Roller Adjustment
    • Reliable Belt Tracking System
    • Main Power + Independent Heater Switch
    • Four Locking Swivel Casters
    • Length: 95″
    • Height: 49″
    • Body Width: 30.5″
    • Overall Width: 37.5″
    • Belt Height: 33.5″
    • Belt Width: 24″
    • Heaters: 2 x Infrared Elements (18” x 24” each)
    • Chamber Length: 42.5″
    • Chamber Height: 5″
    • Entry/Exit Lengths: 28″ / 21.5″
    • Wattage: 4600 / 6000
    • Voltage: 208 / 240 VAC
    • Amps: 21.6 / 25
    • Plug Type: NEMA L6-30
    • Made in USA 🇺🇸

    Please note: This dryer requires a dedicated 208v or 240v 30 amp circuit with the receptacle type below. Some electrical work may be required.

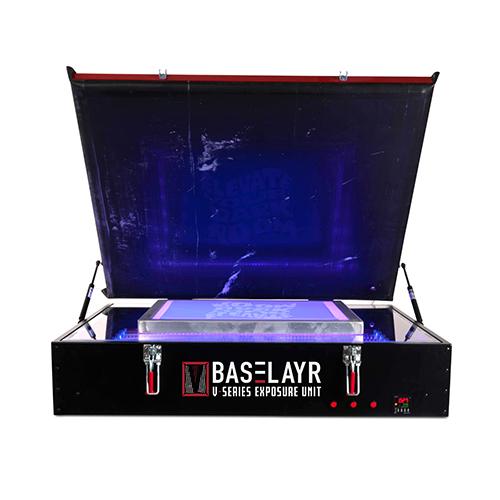

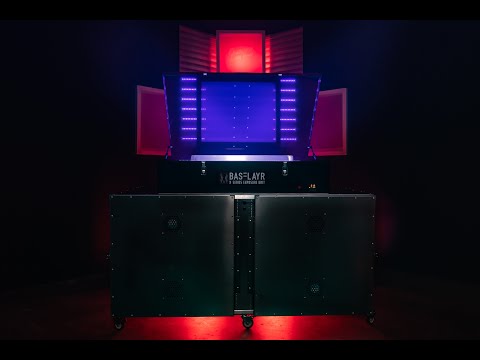

    EXPOSURE UNIT FEATURES AND SPECS
    • LED 405nm bulb technology
    • Digital timer for accuracy
    • Sturdy powder-coated steel construction
    • EC power cord with easy access to an on/off switch
    • Flexible and durable rubber vacuum blanket
    • Heavy-duty gas shocks
    • Adjustable vacuum lid clamps
    • Optically clear, strong tempered glass
    • Two, light-safe T8 LED amber inspection bulbs
    • Oil-free vacuum pump
    • Includes nylon rope to allow air movement between the blanket and frame
    • Unit dimensions: 44"(L) x 32"(W) x 10"(H)
    • Optical clear, tempered glass: 31" x 38"
    • Max frame size OD: 23" x 31"
    • 8 UV T8 LED 405nm tube bulbs designed for screen exposure
    • Two, light-safe T8 LED Amber inspection bulbs with dedicated on/off switch
    • UV wattage: 320 watts
    • Voltage: 115v
    • Standard 110v 3-prong plug
    • Timer: Digital (1/10 sec. increments)
    • Control Panel and timer
    • Time adjustment
    • Timer on/off
    • Vacuum blanket on/off
    • Made in USA 🇺🇸

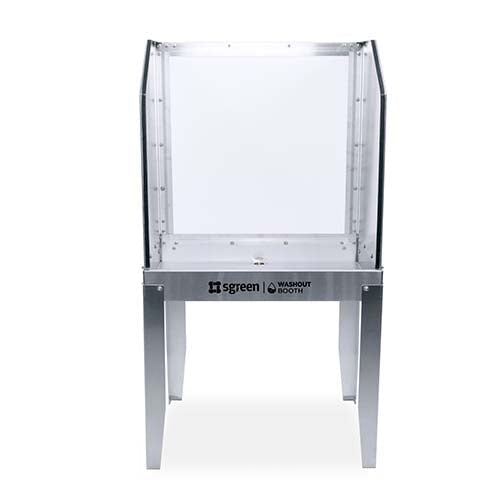

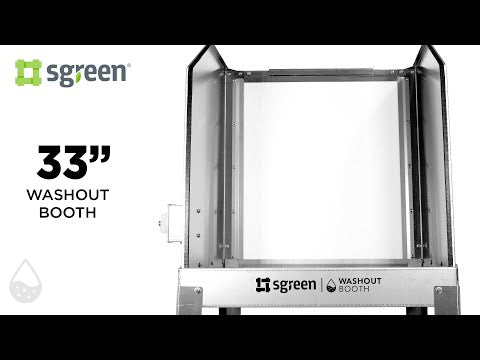

    WASHOUT BOOTH FEATURES AND SPECS
    • Dimensions: 33”W x 24”D x 63”H
    • Easy-to-add backlighting
    • Stainless steel basin
    • Aluminum siding
    • Rubber-protected edges
    • Sturdy structure
    • Easy cleanup
    • Low maintenance
    • Minimal space requirement
    • Easy to assemble
    • Effortless disassembly for transport
    • Drain size: 1-½" Female nominal pipe thread drain (AKA 1-½ NPT)
    • Maximum frame size is 23x31 (this will allow 4-5 inches on either side)
    • Made in USA 🇺🇸

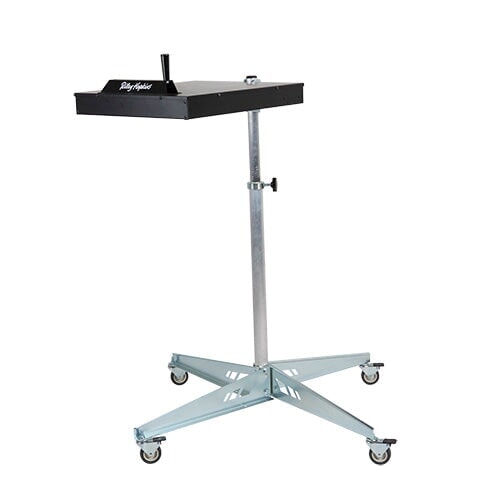

    FLASH DRYER FEATURES AND SPECS
    • Rotating, adjustable stand
    • Locking casters
    • 360° rotation
    • Powder-coated to prevent rust
    • Sturdy, simple design
    • 9-foot power cord
    • Easy assembly
    • 1-year warranty
    • Made in USA 🇺🇸
    • Watts: 1600
    • Volts: 120v
    • Amps: 13.2
    • Heater Size: 16”x20”
    • Element Size: 16”x16”
    • Plug Type: NEMA 5-15P
