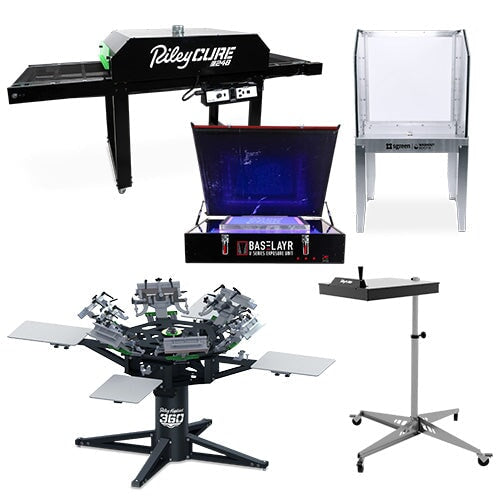

Riley 300 Equipment Only Screen Printing Shop Package

by Ryonet
Save 9%
Original price $12,915.00
Current price $11,793.00
SKU PKPO-RILEY300EQ

The essentials for screen printing success. The Riley 300 Screen Printing Shop Package offers the basics needed to start a screen printing shop using professional-quality equipment to produce professional-quality products. The Package is equipped with brand name equipment from industry leaders such as Riley Hopkins, Sgreen®, and Ryonet. Securing top-notch equipment means you have the liberty to pick whatever supplies you need like emulsions, inks, squeegees, cleaning chemicals, etc.

With the Riley 300 Screen Printing Shop Package, you'll get support through classes, email, chat, phone, and videos. We do everything we can to help you get your business off the ground; it is imperative to our company that we sell you a quality package at a great price. Our mission is your success!

INCLUDED IN KIT:

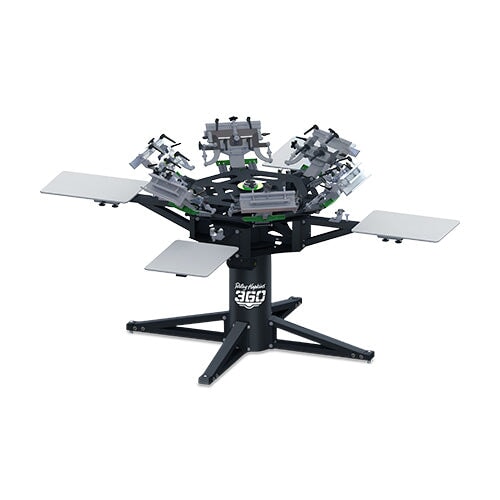

RILEY 300 FEATURES AND SPECS:

  • Sturdy, heavy duty, lightweight construction.
  • XYZ: Micro registration
  • Adjustable Height Mechanism
  • 2-Point Roller Gate
  • 2-year limited warranty
  • Diameter: 93"
  • Base Size: 57"
  • Platen Height: 35.5" - 38.5"
  • Platen Size: 16"x 18"
  • Max Platen Size: 24" x 32"
  • Max Frame Size: 25" x 36"
  • Max Frame Size(every other): 42" x 48"
  • Color/ Stations: 6 color / 4 station
  • Shipping Weight: 602 lbs

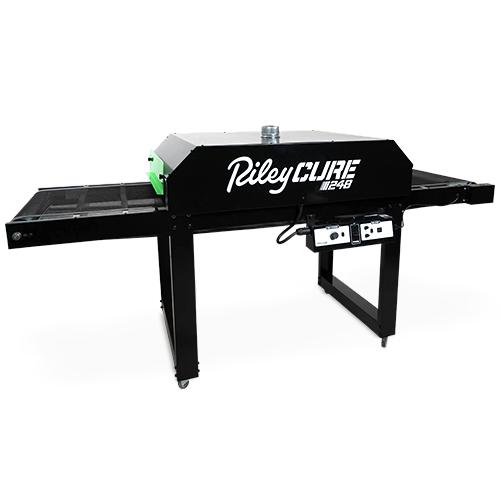

RILEYCURE CONVEYOR DRYER FEATURES AND SPECS:

  • Dual 3050 watt heat elements
  • Adjustable gates for optimal heat retention
  • Built-in belt speed control
  • Handles about 220 shirts per hour
  • Length: 96"
  • Width: 34"
  • Height: 41"
  • Belt Width: 24"
  • Belt Height: 30.3"
  • Belt Drive Power: 120 Volt
  • Belt Speed: 1-12 fpm
  • Chamber Length: 48"
  • Elements: 2
  • Capacity: Up to 300 shirts per hour
  • Oven Power: 240 Volts or 208 Volts
  • Wattage: 6500 watts @ 240v, 4558 watts @ 208v
  • Amps: 27 amps @ 240v, 22.1 @ 208v
  • Plug Config: NEMA L6-30P
  • 14.5 ft. power cord
  • Warranty: 1 Year
  • Temperature Control Included

X-VACTOR LED EXPOSURE UNIT FEATURES AND SPECS:

  • LED bulb technology — gives you a stronger and more durable stencil compared to traditional T8 bulbs.
  • Upgraded digital timer, standard on each X-Vactor LED.
  • CAD designed powder coat steel construction.
  • EC power cord port with easy to access on/off switch.
  • Improved vacuum drawdown time < 30 seconds for full vacuum.
  • Digital timer for extreme accuracy
  • Specially manufactured UV for photopolymer or dual cure emulsion exposure
  • Extremely flexible and durable rubber vacuum blanket
  • Heavy-duty gas shocks for easy open and close access
  • Adjustable vacuum lid clamps
  • Optically clear extremely strong tempered glass
  • Sturdy powder coat steel construction
  • Oil free vacuum pump is quiet and powerful
  • Includes nylon rope to allow air movement between blanket and frame
  • UL certified electrical components
  • 3-year limited warranty (excludes blanket, glass, and bulbs)
  • Made in the USA
  • Overall dimensions: 44"(L) x 32"(W) x 10"(H)
  • Shipping dimensions: 40"(W) x 50"(L) x 12"(H) 150lbs
  • Optical clear tempered glass: 31" x 38"
  • Max frame size OD: 23" x 31"
  • Vacuum blanket size: 31" x 38"
  • LED bulbs: 8 - UV T8 LED tube bulbs
  • Light safe inspection bulbs: 2
  • UV wattage: 320 watts
  • Timer: Digital (1/10 sec. increments)
  • Voltage: 115v
  • Amps: 8 amps
  • Weight: 95 lbs
  • Ship Weight: 150 lbs
  • Control Panel and Timer
  • Time adjustment
  • Timer on/off
  • Vacuum blanket on/off
  • Light safe T8 LED Amber inspection bulbs with dedicated on/off switch

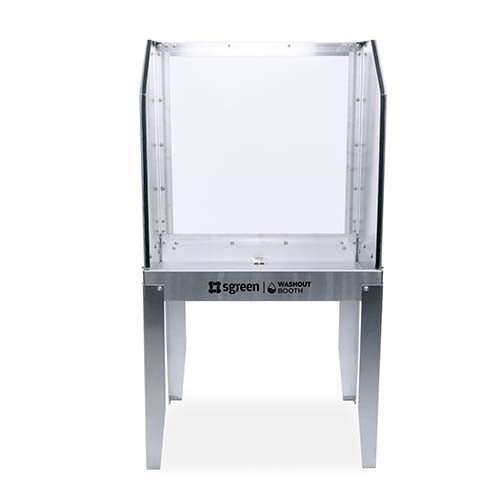

SGREEN WASHOUT BOOTH FEATURES AND SPECS:

  • Dimensions: 33”W x 24”D x 63”H
  • Easy-to-add backlighting
  • Stainless steel basin
  • Aluminum siding
  • Rubber-protected edges
  • Sturdy structure
  • Easy cleanup
  • Low maintenance
  • Minimal space requirement
  • Easy to assemble
  • Effortless disassembly for transport
  • Drain size: 1-½" Femail nominal pipe thread drain (AKA 1-½ NPT)

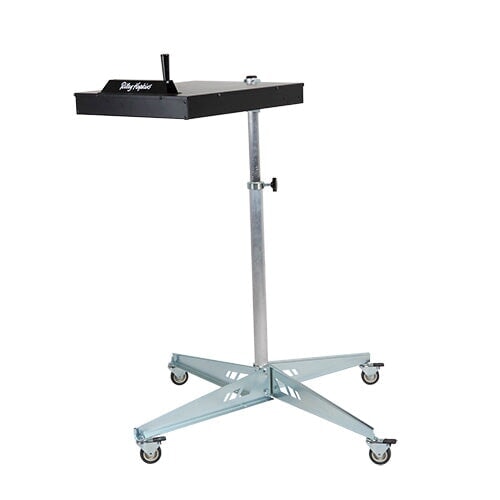

RYOFLASH DRYER FEATURES AND SPECS:

  • 16" x 16" 120V, 1575W, 13.3 amps infrared element
  • Rotating and adjustable stand
  • Sturdy design with powder coated housing to prevent rust
  • Locking casters
  • Simple design
  • Easy assembly
  • UL certified components
  • Runs off any 15amp circuit
  • 1 year warranty
  • Plug: NEMA 5-15P(Standard Outlet)
