Start your screen printing business with the right equipment. The Riley Hopkins 300 Equipment Only Screen Printing Kit offers the bare essentials from industry leaders like Riley Hopkins®, Sgreen®, and Baselayr®. You will jumpstart your new career with professional equipment, generating professional, high-quality results. Securing top-notch equipment means you have the freedom to choose other screen printing supplies like inks, squeegees, screens, emulsions, and more.
Investing in a shop package is an easy, economical way to start up or upgrade a screen printing business. Jumpstart your print shop today with the Riley Hopkins 300 Equipment Only Screen Printing Kit.
INCLUDED IN KIT:
PRESS FEATURES AND SPECS:
- Sturdy, heavy-duty, lightweight construction.
- XYZ: Micro registration
- Adjustable Height Mechanism
- 2-Point Roller Gate
- Lifetime Limited Warranty
-
Diameter: 93"
-
Base Size: 57"
-
Platen Height: 35.5" - 38.5"
-
Platen Size: 16"x 18"
-
Max Platen Size: 24" x 32"
-
Max Frame Size: 25" x 36"
-
Max Frame Size(every other): 42" x 48"
-
Color/ Stations: 6 color / 4 station

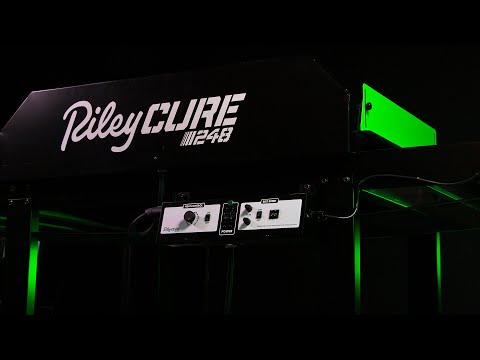

CONVEYOR DRYER FEATURES AND SPECS:
- On/off switches for the belt, temperature, and dryer
- Temperature control
- Belt speed control
- Vented exhaust
- Adjustable gates
- Belt tracking guide
- Two locking casters, two rolling casters
- Dry-erase panel to write down specific settings
- 10-foot power cord
- Length: 96”
- Width: 36”
- Belt Width: 24”
- Belt Drive Power: Single Point Power
- Number of Elements: 2
- Heater dimensions: 18”x24”
- Chamber Length: 48”
- Chamber Height: 5”
- Entry/Exit Length: 24”, 24”
- Capacity: 300 shirts per hour
- Wattage: 6500
- Voltage: 240
- Amps: 27
- Plug Type: Nema L6-30P

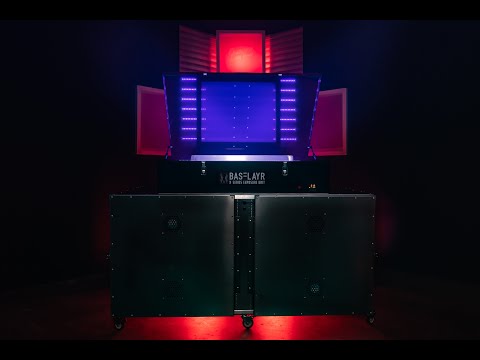

EXPOSURE UNIT FEATURES AND SPECS:
- LED 405nm bulb technology
- Digital timer for accuracy
- Sturdy powder coated steel construction
- EC power cord with easy access to an on/off switch
- Flexible and durable rubber vacuum blanket
- Heavy-duty gas shocks
- Adjustable vacuum lid clamps
- Optically clear, strong tempered glass
- Two, light-safe T8 LED amber inspection bulbs
- Oil-free vacuum pump
- Includes nylon rope to allow air movement between the blanket and frame
-
Unit dimensions: 44"(L) x 32"(W) x 10"(H)
-
Optical clear, tempered glass: 31" x 38"
-
Max frame size OD: 23" x 31"
- 8 UV T8 LED 405nm tube bulbs designed for screen exposure
- Two, light-safe T8 LED Amber inspection bulbs with dedicated on/off switch
-
UV wattage: 320 watts
-
Voltage: 115v
- Standard 110v 3-prong plug
-
Timer: Digital (1/10 sec. increments)
- Control Panel and timer
- Time adjustment
- Timer on/off
- Vacuum blanket on/off
WASHOUT BOOTH FEATURES AND SPECS:
- Dimensions: 33”W x 24”D x 63”H
- Easy-to-add backlighting
- Stainless steel basin
- Aluminum siding
- Rubber-protected edges
- Sturdy structure
- Easy cleanup
- Low maintenance
- Minimal space requirement
- Easy to assemble
- Effortless disassembly for transport
- Drain size: 1-½" Female nominal pipe thread drain (AKA 1-½ NPT)
- Maximum frame size is 23x31 (this will allow 4-5 inches on either side)
FLASH DRYER FEATURES AND SPECS:
- Rotating, adjustable stand
- Locking casters
- 360° rotation
- Powder-coated to prevent rust
- Sturdy, simple design
- 10-foot power cord
- Easy assembly
- Watts: 1600
- Volts: 120v
- Amps: 13.2
- Heater Size: 16”x20”
- Element Size: 16”x16”
- Plug Type: NEMA 5-15P
FREE SHIPPING!
*within the contiguous U.S.*
This package ships in 2-3 boxes and one crate. The equipment will ship from separate locations and might arrive at different times, depending on stock.
