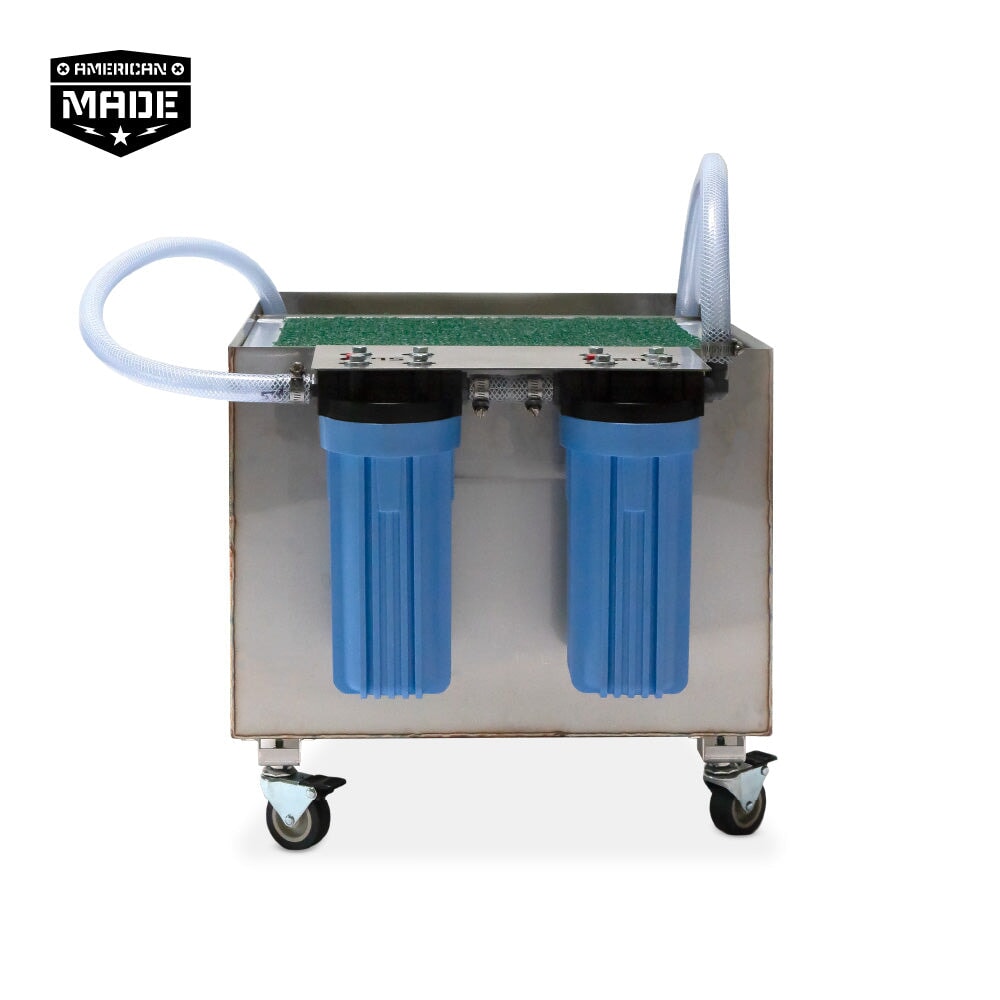

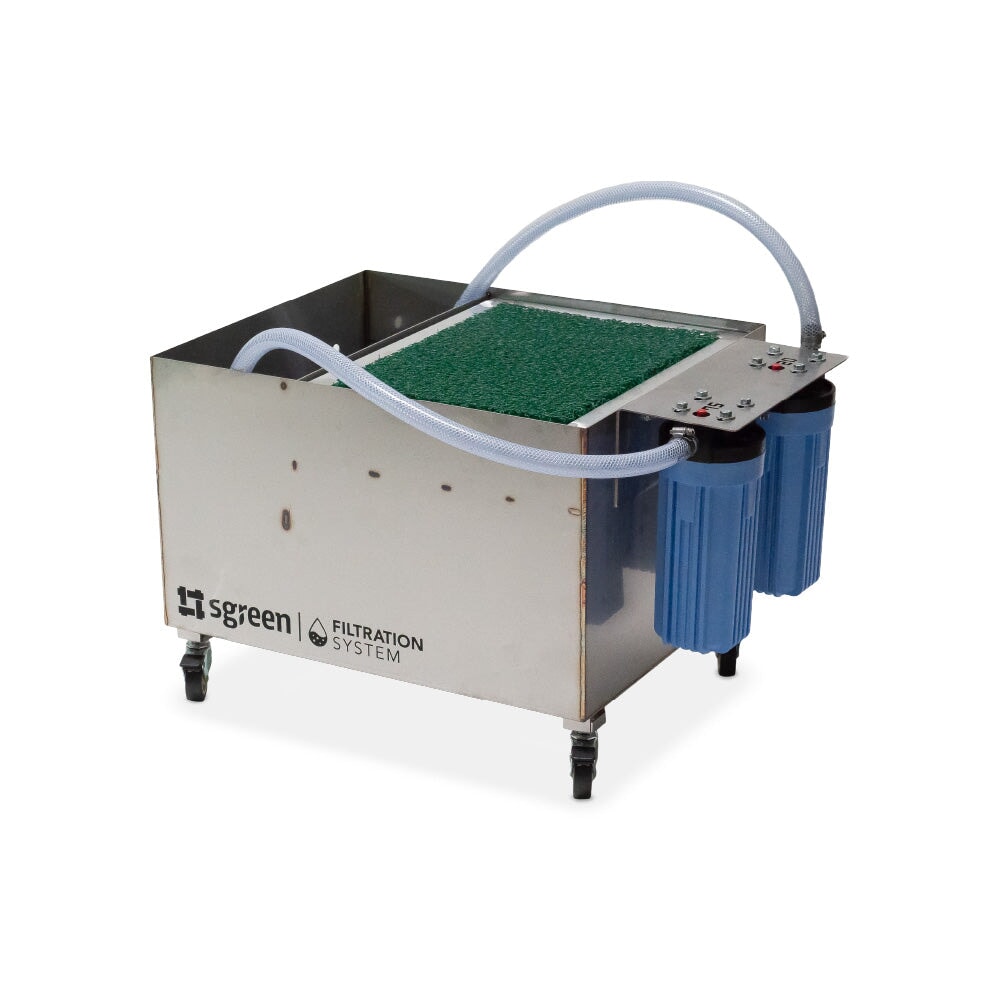

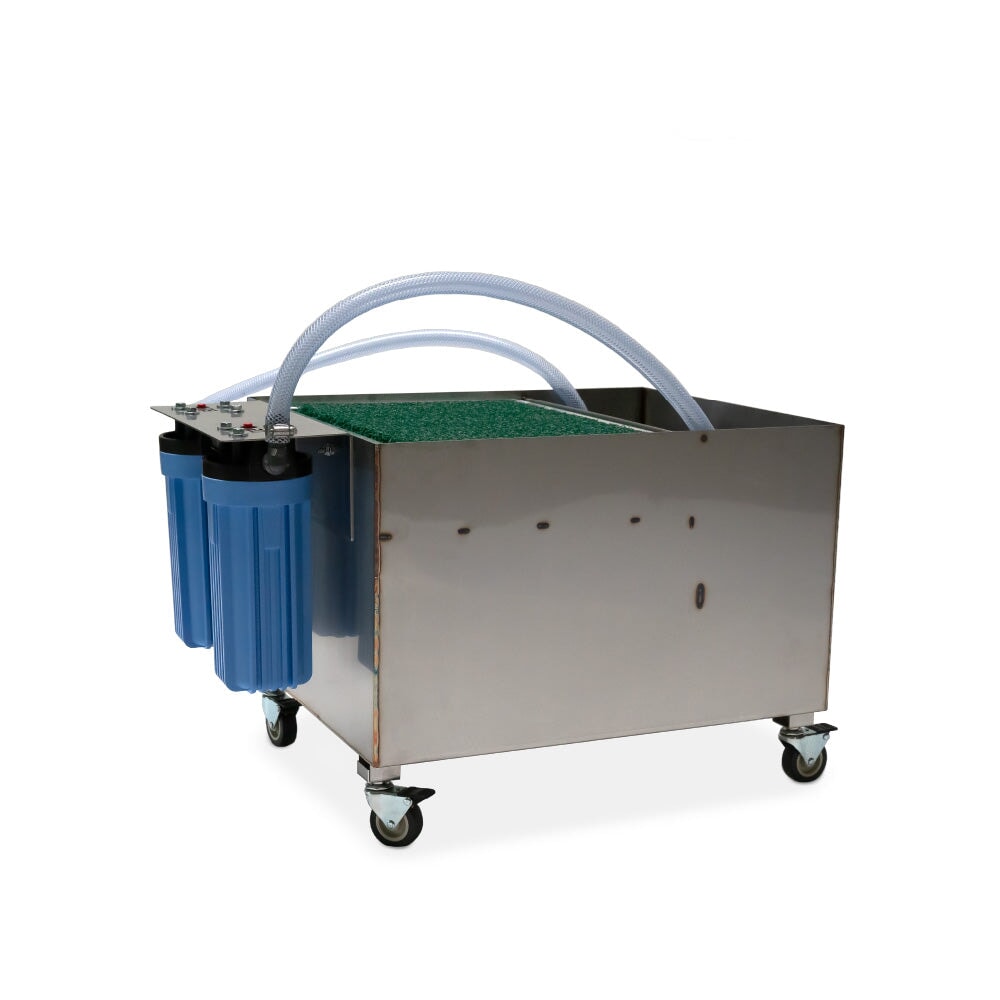

Sgreen® Washout Booth Filtration System
MADE IN USA 🇺🇸

Sgreen  |  SKU: DREQ-RYOFILTER-NP
sale
SAVE BIG ON SGREEN EQUIPMENT!
Save 15% On Sgreen Equipment Thru 9:00AM 12/30

Pump
$985.96 $1,159.95
Flat rate
multi-qty message
In stock
DESCRIPTION

The Sgreen® Filtration System is an ink filtration system designed to remove harmful waste solids from the screen cleaning process while protecting your plumbing and the environment from harmful byproducts. Even when using eco-friendly inks and chemicals, the screen cleaning and reclaiming process can cause harmful solids to be flushed down the drain. Placing the Sgreen® Filtration System under your washout booth will filter out these waste products from your water and allow you to run a greener shop with a cleaner conscience.

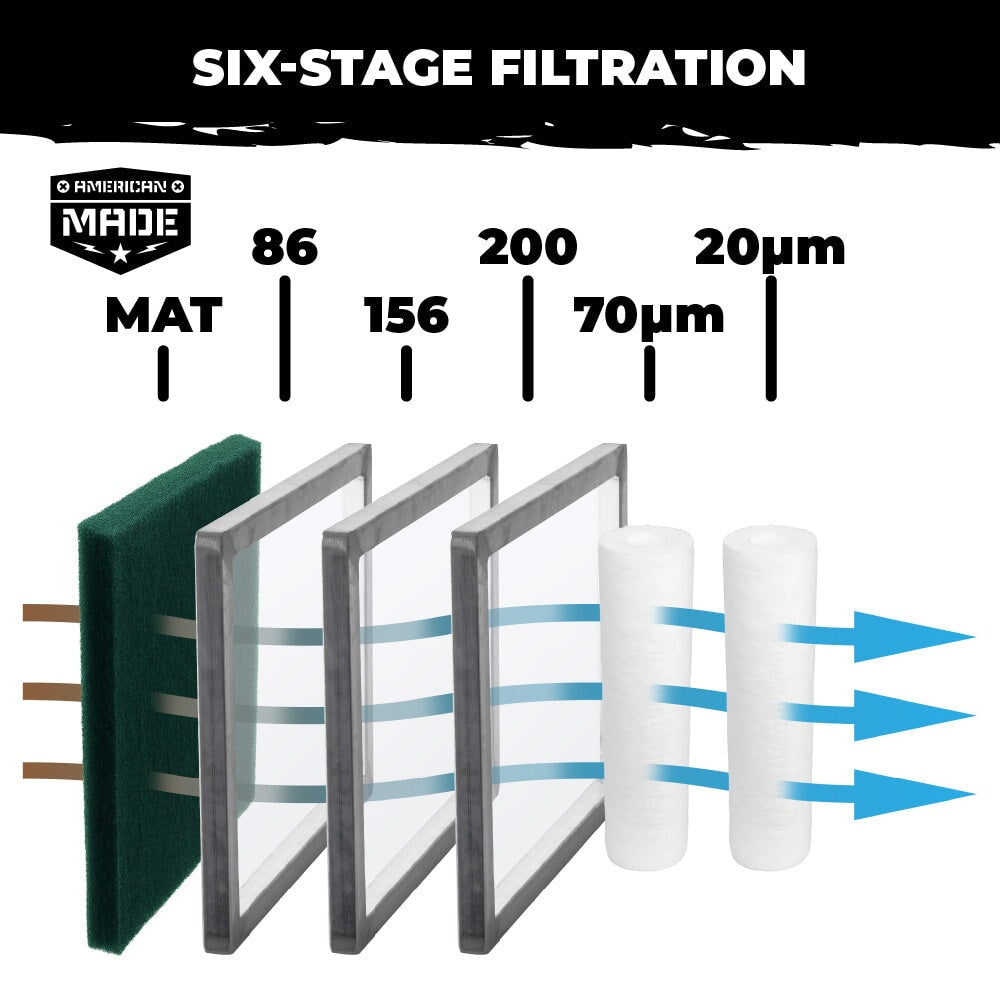

The Sgreen® Filtration system catches the water as it comes out of the sink, sending it through six stages of filtration for the optimal clean water. The first stage is a disposable filter which catches all of the big particles immediately; then the water goes through a series of three reusable screens: 86, 156, and 200 mesh. The filtered water then flows into a pump holding tank where a high powered industrial sump pump is triggered, pushing the water through the final two stages: a 70 micron and 20 micron filter. With this six stage filtering process, you can be confident that the water has been filtered multiple times, most solids have been removed, and any remaining particulate has been reduced to 20 microns, giving you clean water and a true eco-friendly screen cleaning process.

CHECK OUT THE SGREEN PRODUCT CATALOG

FEATURES
  • Cleans harmful byproducts from waste water.
  • Six-stage water filtering process catches waste ranging from the largest emulsion pieces to the tiniest ink particles.

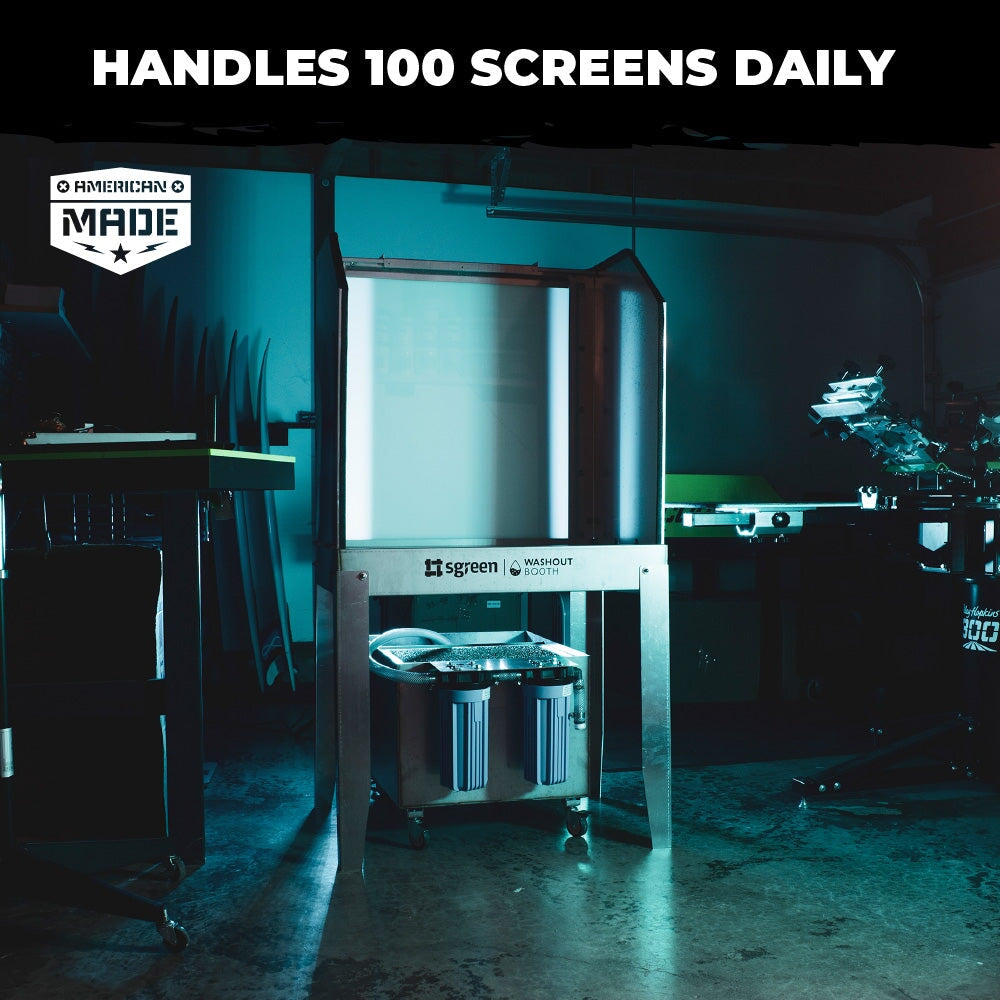

  • Recommended for shops running a single auto, or working with up to 100 screens per day.
  • Increased volume or usage will require more frequent cleaning of the system.
  • Great solution for the end of a Lotus/Auto-reclaimer once the solids are initially removed.
  • Recommended to always practice smart ink management.
  • Stainless steel casing.
  • Six filters, ranging from a 86 mesh screen to 20 microns.
  • Reservoir holds approximately 22 US Gallons (while operating)

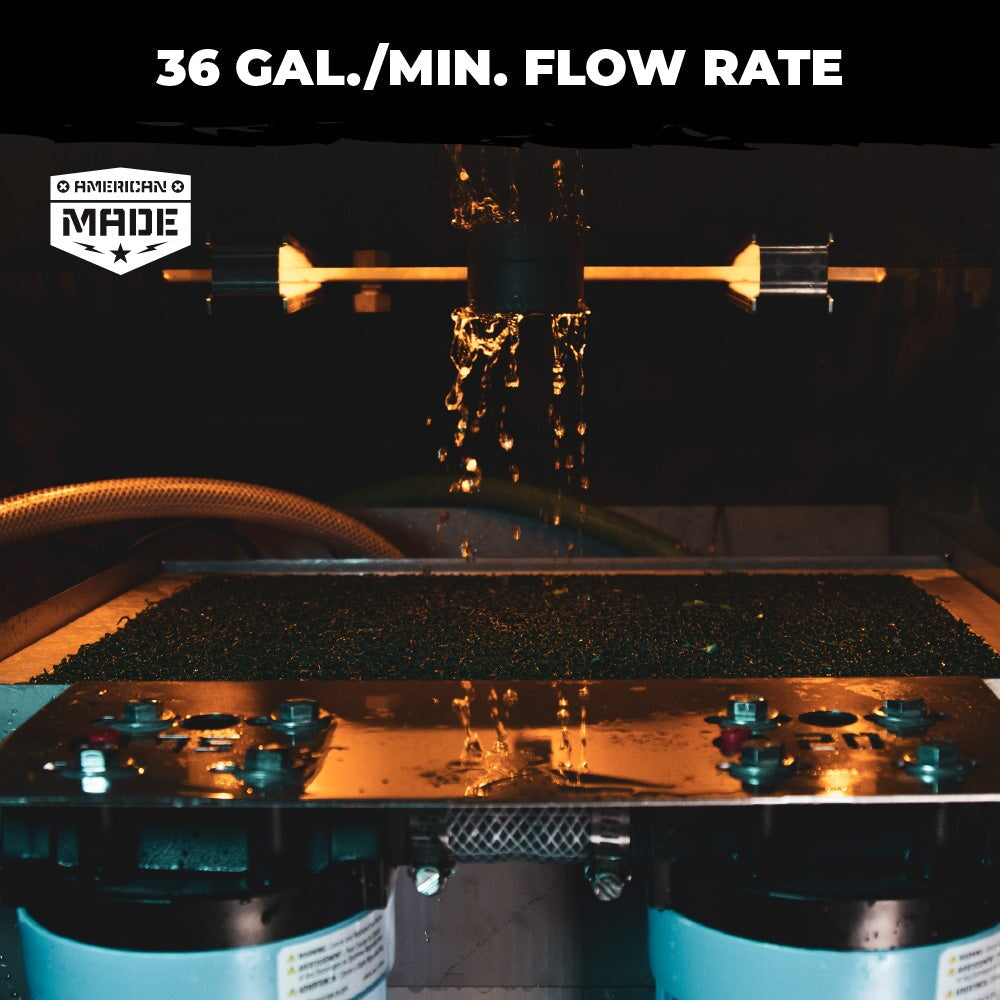

  • Pump flow rate (without restriction): 36 gallons per minute
  • Pump specs: 115V and 60Hz, 1/3 HP w/ 2.9 maximum Amps.
  • Drain pipe size needed: 1-1/2"
  • Made in USA 🇺🇸
BENEFITS
  • Catches hazardous waste products, which protects your plumbing and environment
  • Stopping harmful gunk from going down the drain means printers don't have to worry about paying for a plumber to fix their pipes
  • Helps printers maintain an eco-friendly shop
ASSEMBLED DIMENSIONS

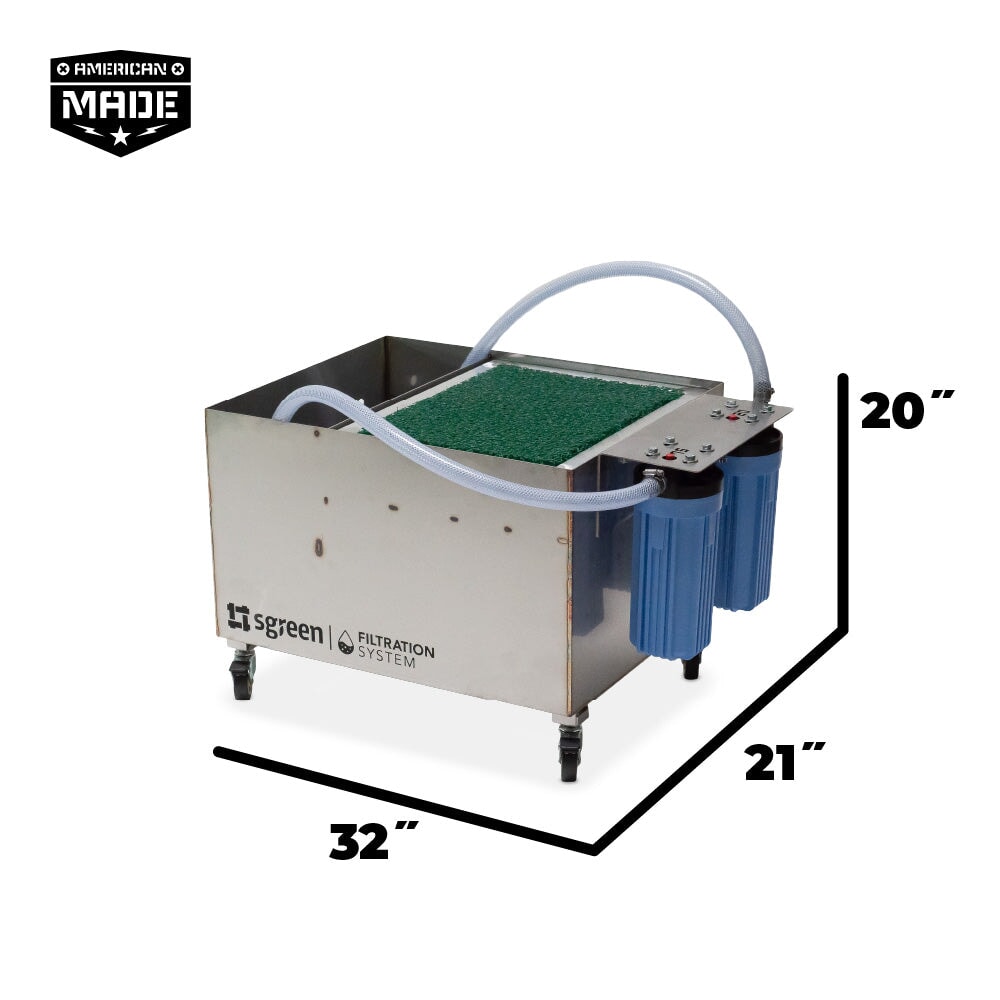

32"L x 21"W x 20"H with wheels

PRODUCT DATA SHEETS
AMERICAN MADE & MADE TO LAST

Premier products, proudly crafted in the USA 🇺🇸 by Ryonet MFG. Our team has been relentlessly manufacturing world-class, quality-driven products for businesses across the Screen Printing Industry since 2004.
