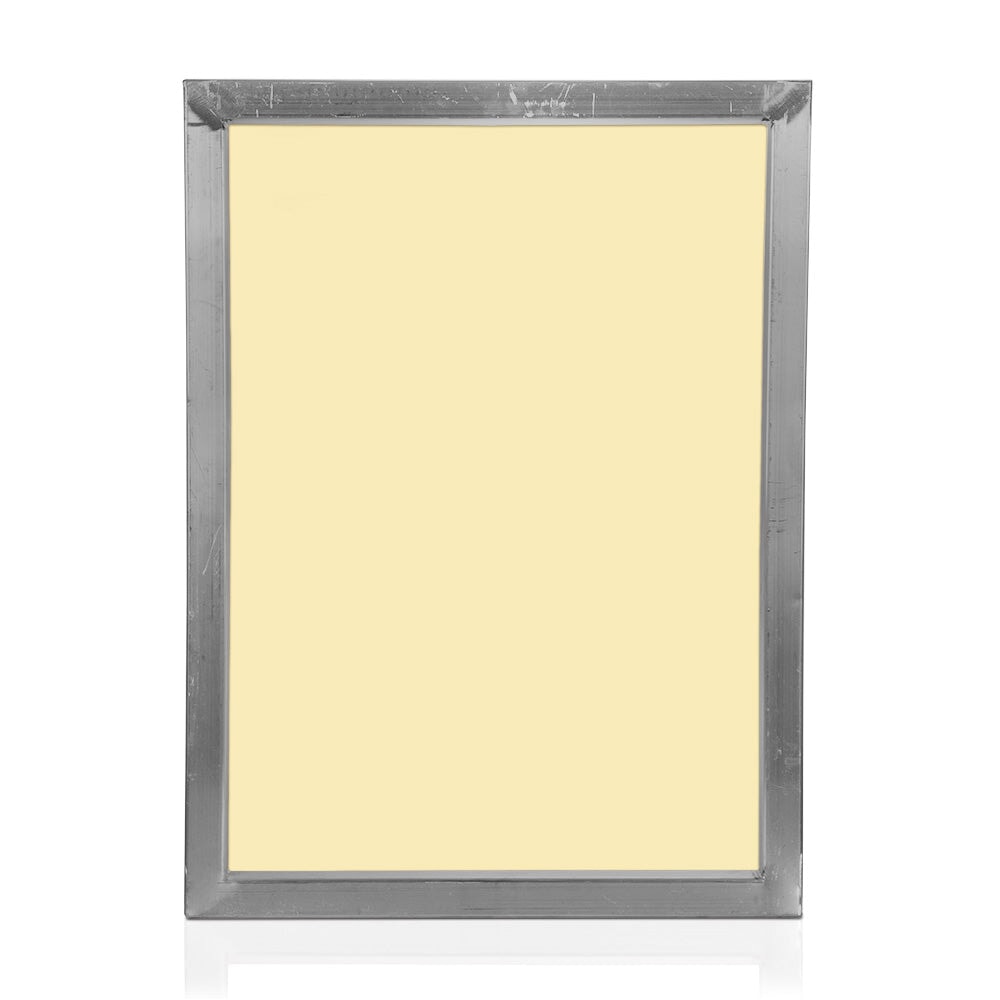

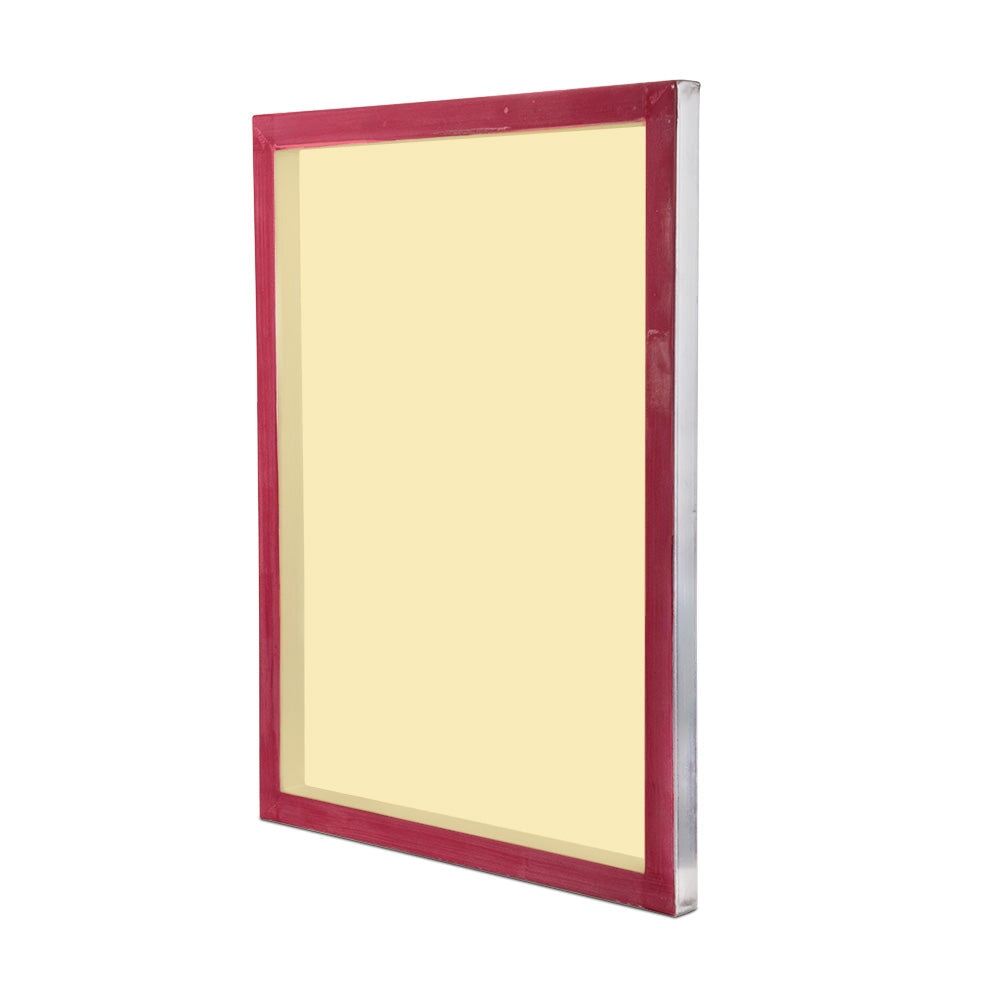

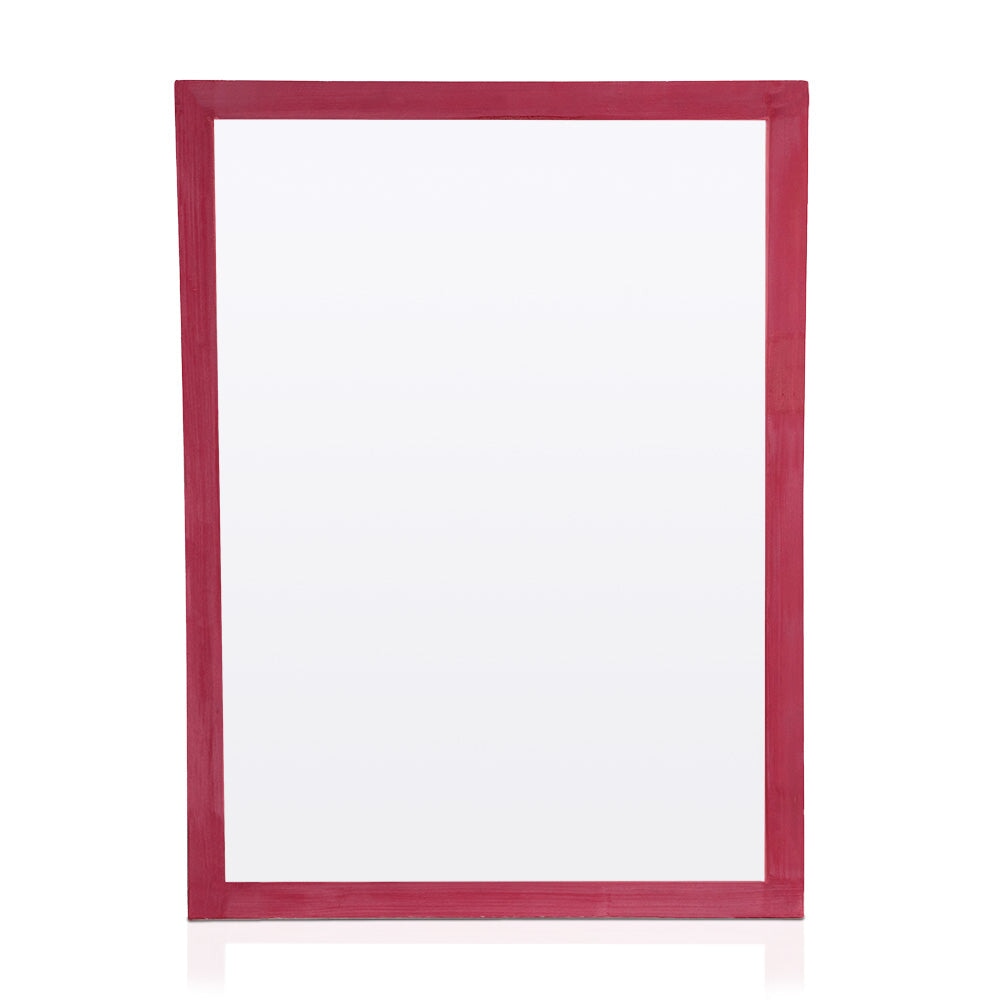

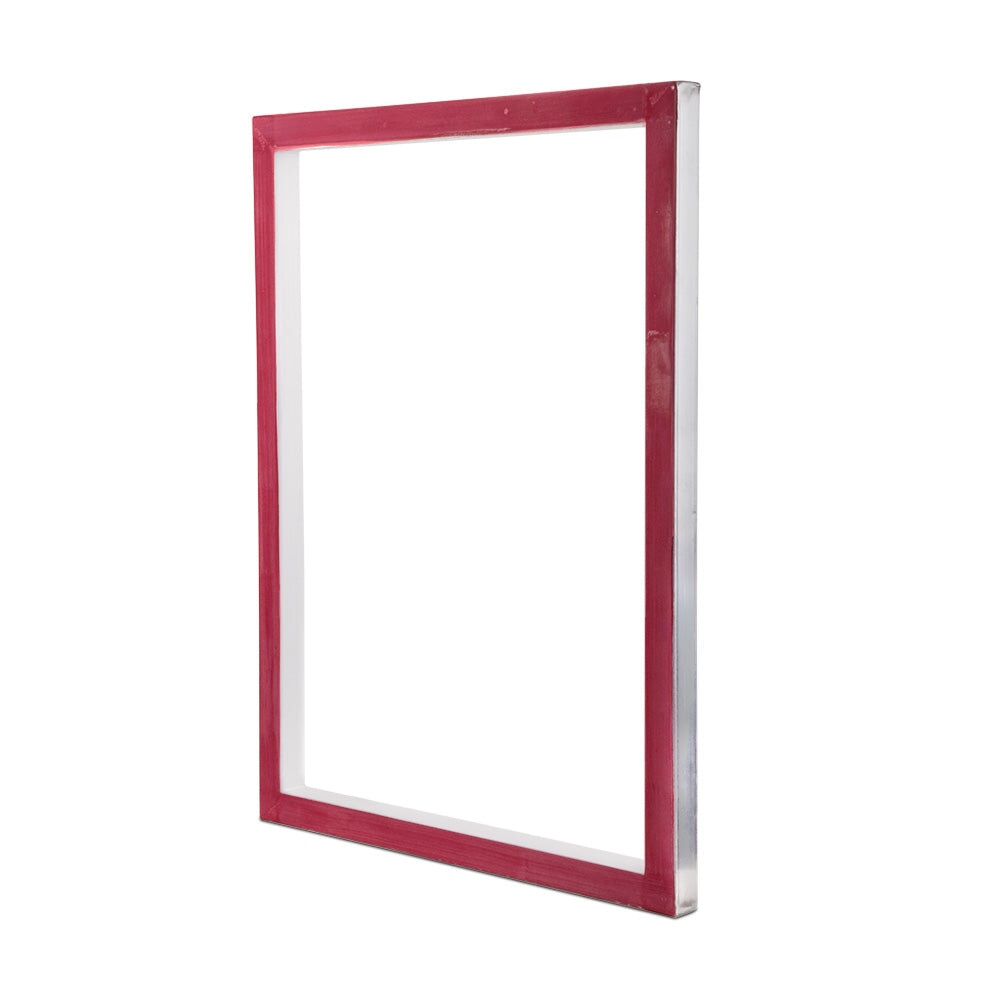

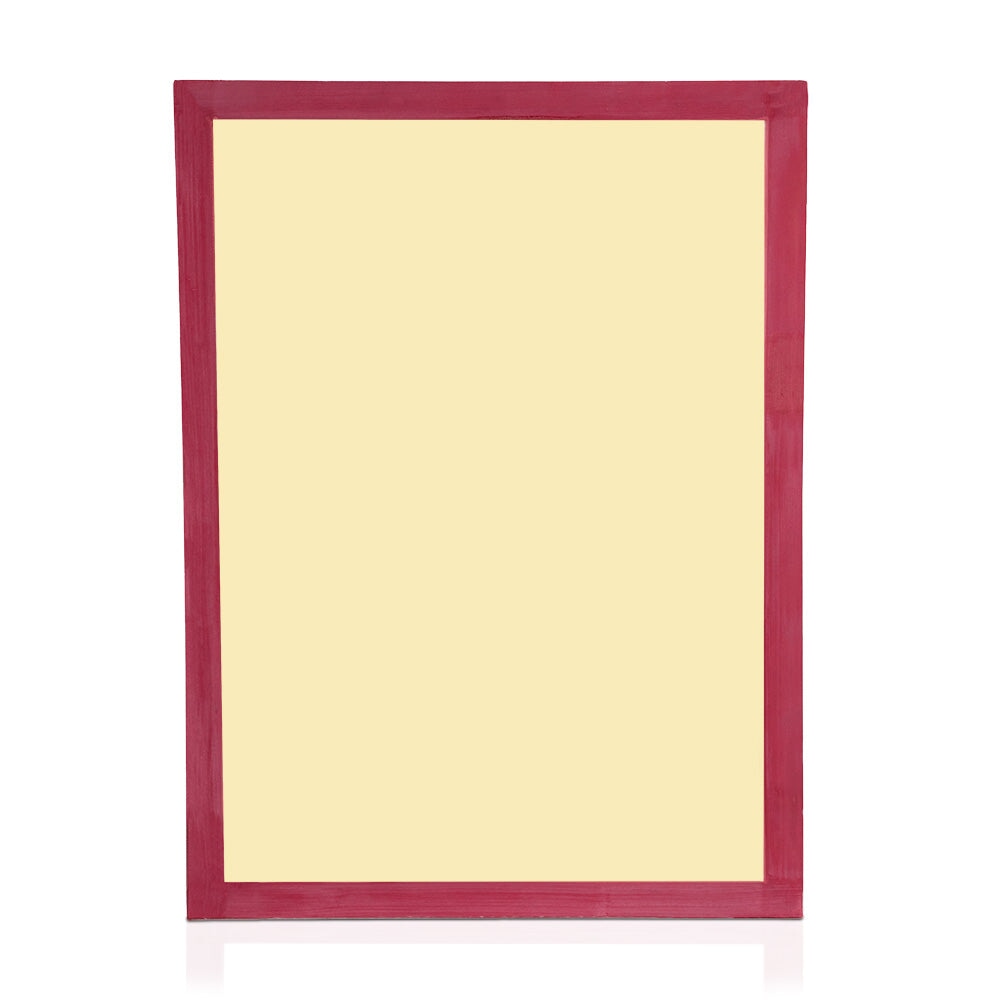

Baselayr Premium Red Glue 23x31in Aluminum Screen Printing Frame

NEW ARRIVAL

• Premium Quality Construction: Crafted from the highest-grade aluminum and hand-welded in the USA for unmatched durability and reliability.
• Superior Tension Retention: Holds tension exceptionally well, ensuring consistently sharp and precise prints over time.
• Thicker Frame (1 1/2 inch): Provides enhanced durability and strength, allowing it to hold higher tension levels for improved performance.
• Exceptional Durability: Resistant to warping, even when exposed to water in dip tanks or washout sinks, maintaining a flat structure through thousands of prints.
• Lightweight Design: Easy to handle during use and helps reduce shipping costs.
• Customizable Options: Available in a wide range of mesh counts, frame sizes, and mesh colors to suit your specific screen printing needs.

110 MESH COUNT

The 110 mesh count is will lay down a fairly thick layer of ink. This mesh is great for block text letters and larger spot color designs. It’s also a recommended mesh for an underbase because you will only have to do one pass, which speeds up production.

• 110 Mesh Count, 80 Thread Diameter, Saati HiTex White Mesh

125 MESH COUNT

125 mesh is one of the most commonly mesh sizes in screen printing. It works great for printing white ink and other colored inks that have a thicker viscosity. This mesh is great for block text letters and larger spot color designs.

• 125 Mesh Count, 70 Thread Diameter, Saati HiTex White Mesh

158 MESH COUNT

158 mesh (previously 156) is great for general purpose textile printing with basic to semi-fine detail. They will hold a little finer detail than 110 mesh and also work well with thinner inks.

• 158 Mesh Count, 64 Thread Diameter, Saati HiTex White Mesh

196 MESH COUNT

196 mesh (previously 200) are great for printing more detailed prints that need a thinner layer of ink to be laid down than a 158. They work well with thinner inks and helps to keep the inks from flooding onto the garment. Printers that want a softer-hand feel with plastisol ink can use this mesh count to achieve that feel, but it may reduce the ink's opacity.

• 196 Mesh Count, 48 Thread Diameter, Saati HiTex Yellow Mesh

230 MESH COUNT

The 230 mesh screens are great for printing thinner inks like discharge or water-based. A 230 mesh can hold halftones well while letting more ink through than a 305 mesh could.

• 230 Mesh Count, 48 Thread Diameter, Saati HiTex Yellow Mesh

280 MESH COUNT

The 280 mesh screens are great for printing thinner inks like discharge or water-based. A 280 mesh can hold halftones well while letting more ink through than a 305 mesh could.

• 280 Mesh Count, 40 Thread Diameter, Saati HiTex Yellow Mesh

305 MESH COUNT

305 mesh is used for jobs with the highest level of detail, and fine halftone four color and simulated process prints. Fine halftone dots need very high mesh counts in order to hold and expose properly. Otherwise, as stated before, the halftones and lines will simply fall through the mesh, leaving you with a less than desirable image to work with. Check out this blog to learn more about mesh counts and their uses.

• 305 Mesh Count, 40 Thread Diameter, Saati HiTex Yellow Mesh

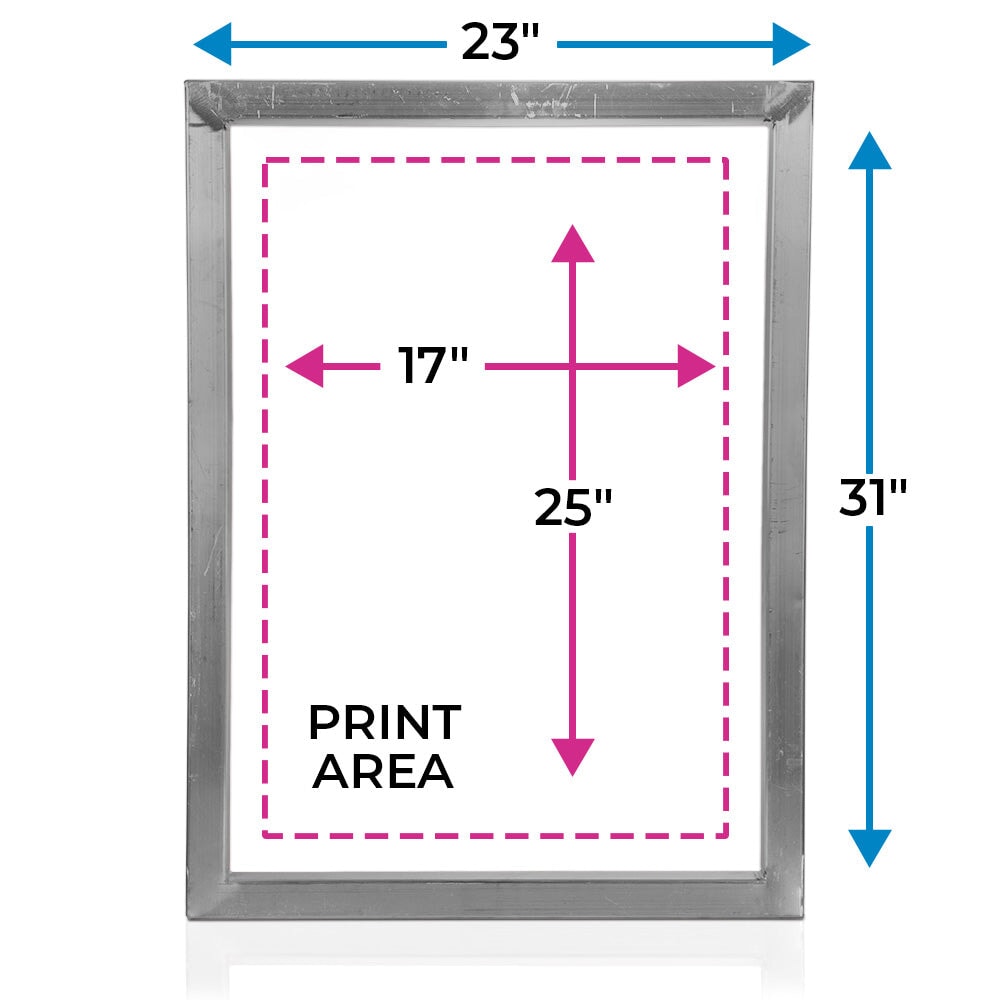

• Size: 23 x 31 in.

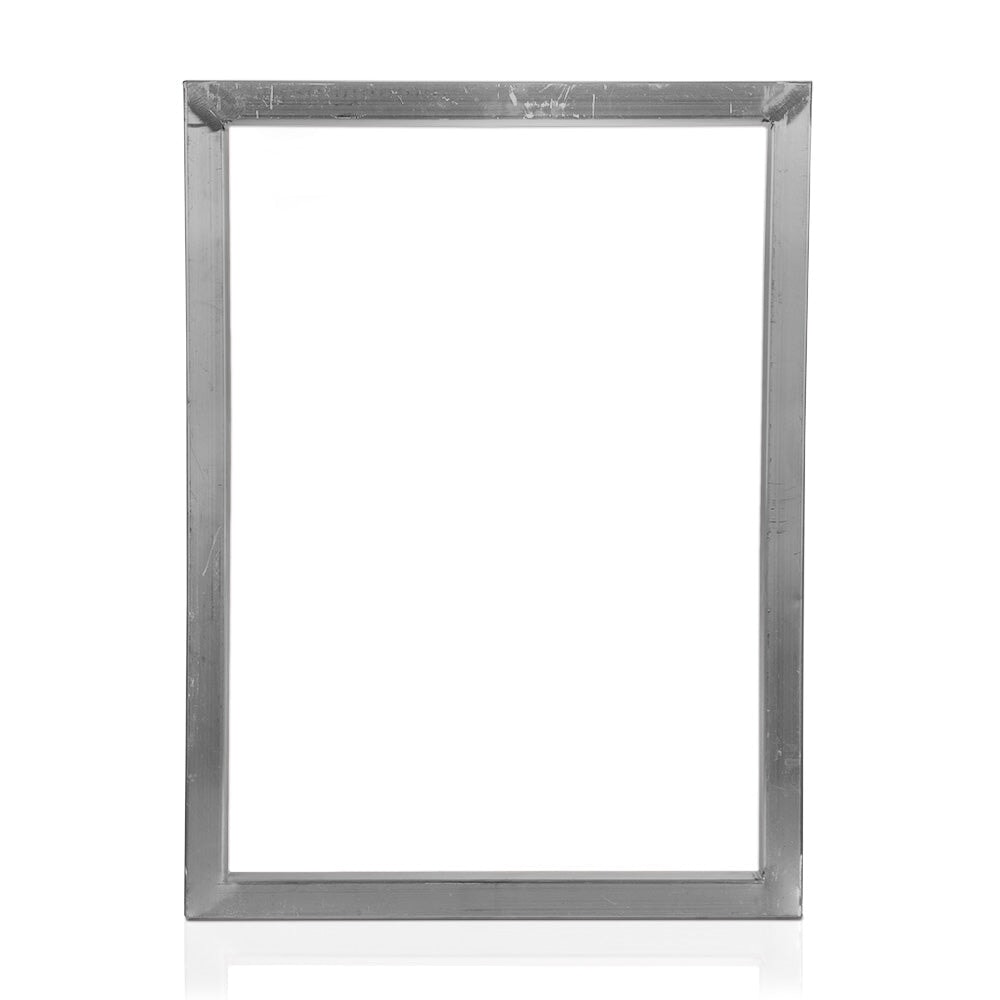

• Material: Aluminum Frame
• Tube Profile: 1.5"
• Mesh Counts: 110 (80 thread diameter), 125 (70 thread diameter) 158 (64 thread diameter), 196 (48 thread diameter), 230 (48 thread diameter), 280 (40 thread diameter), 305 (40 thread diameter)
• Color: White & Yellow Mesh
• Printable Area: <17x25"
• Scoop Coater Size: 19"
• Max Squeegee Size: 18"
• Made in the USA
