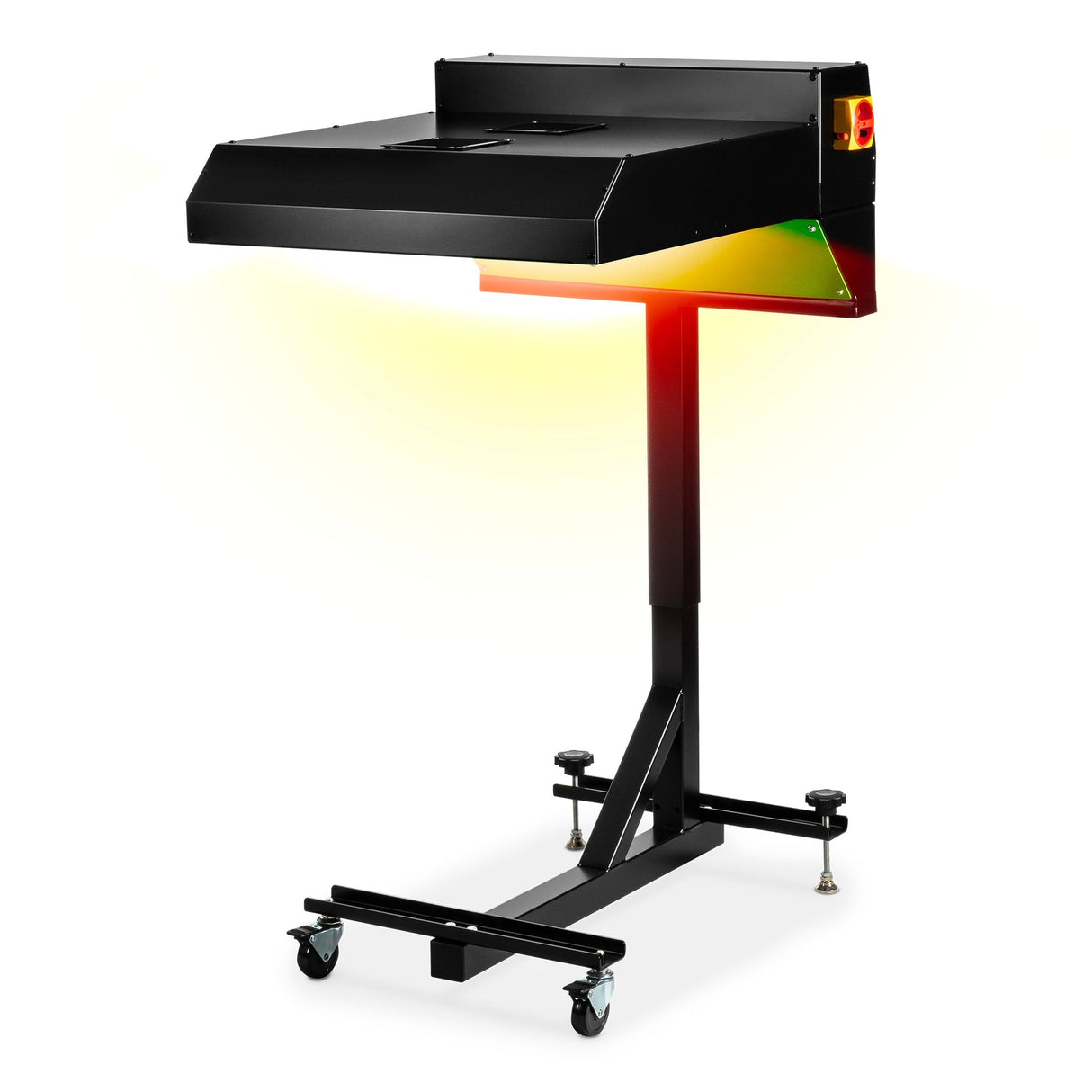

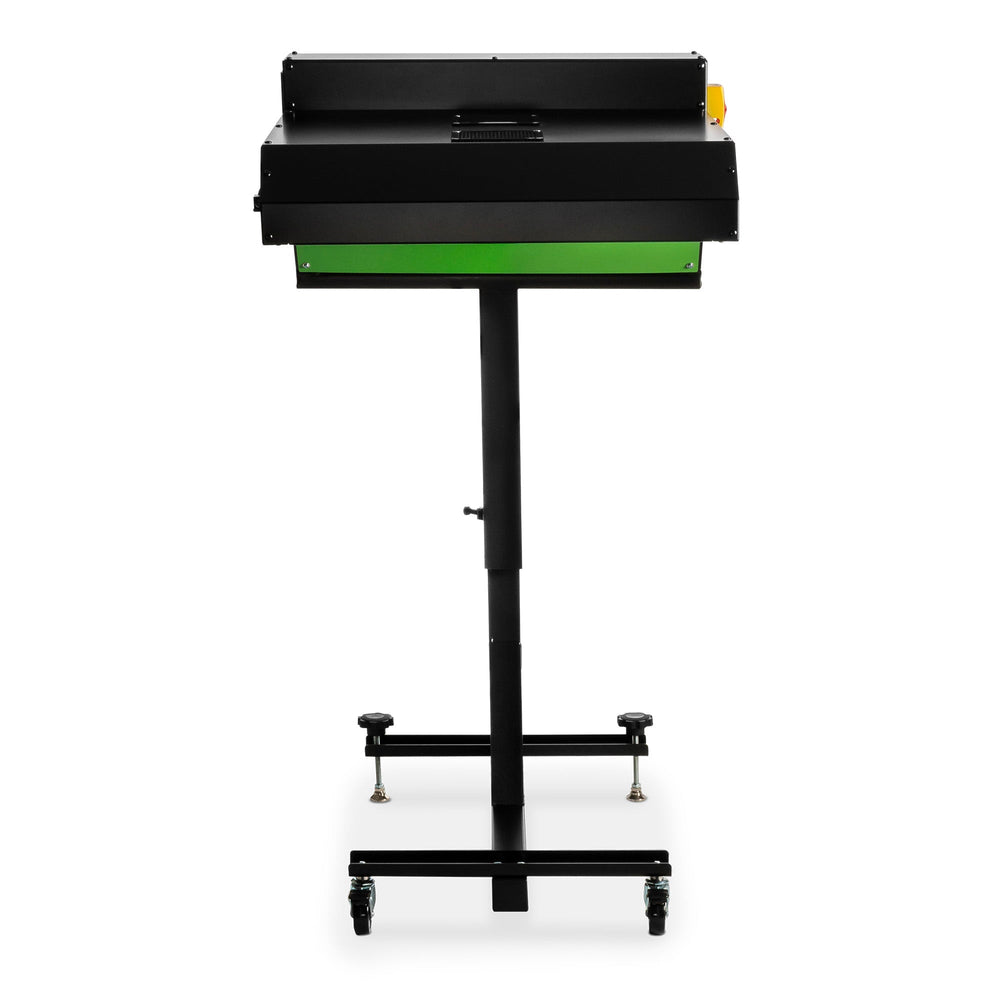

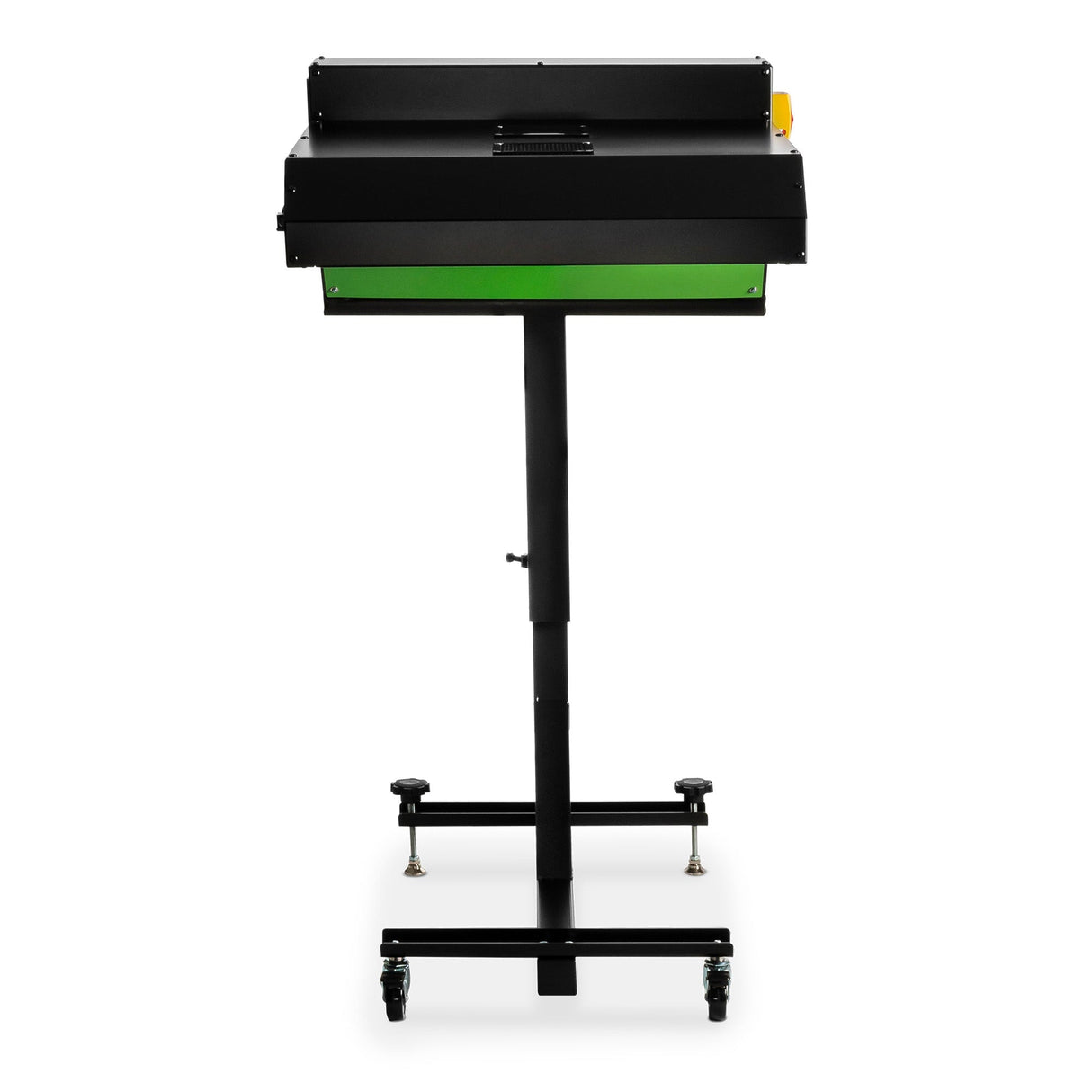

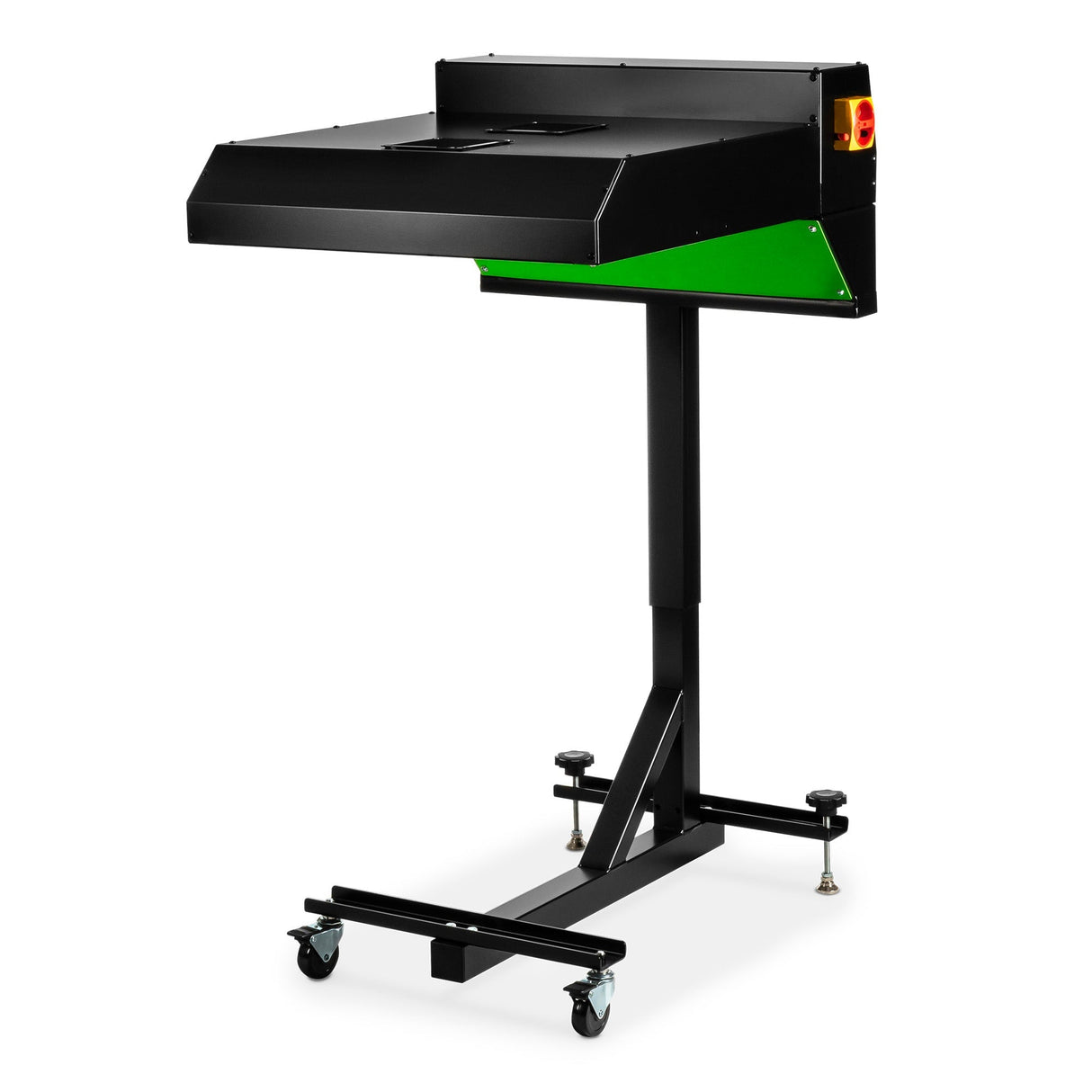

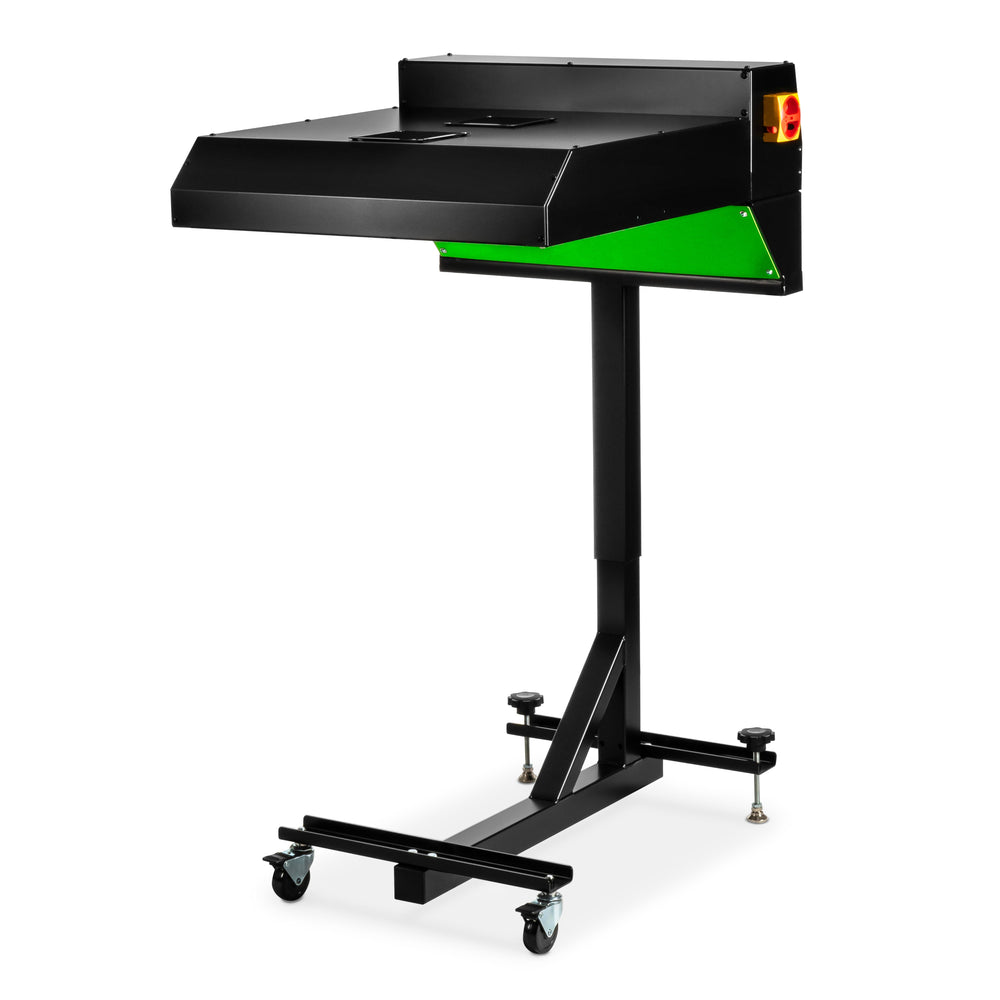

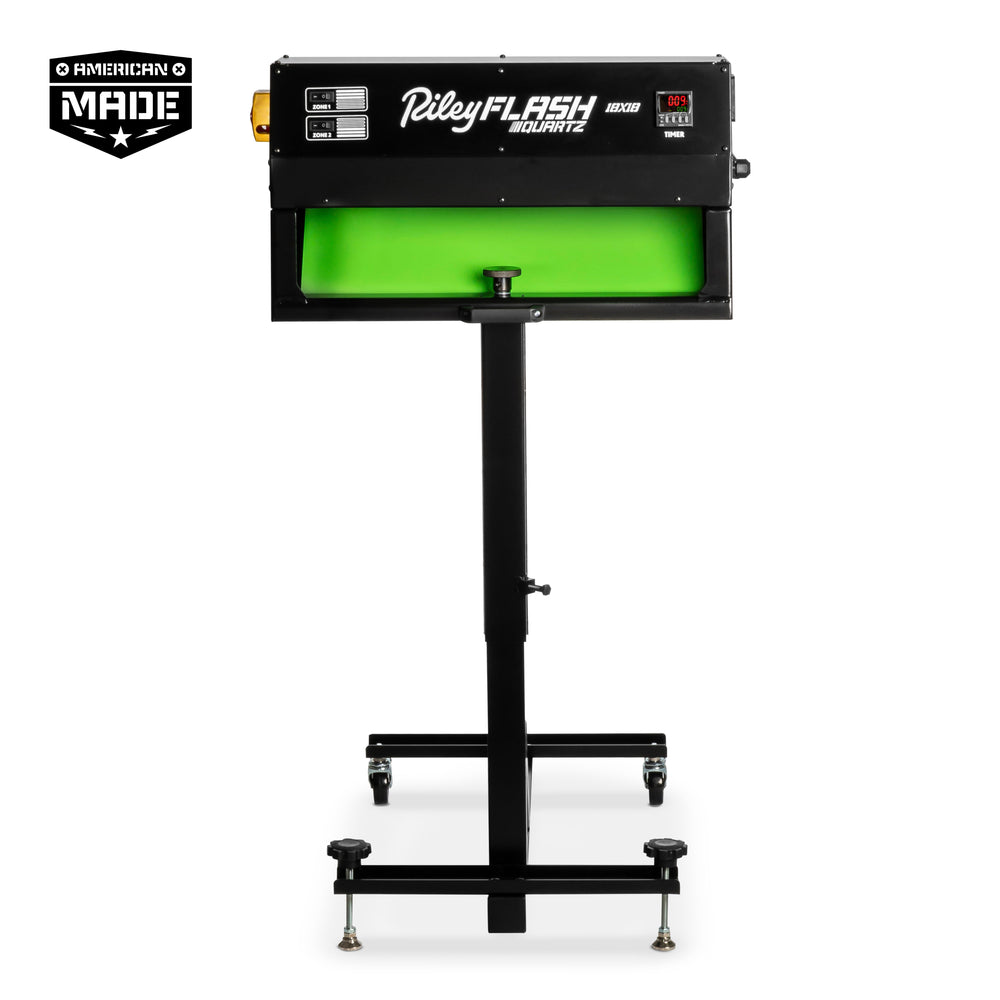

Riley Flash Quartz Dryer 18"x18"
NEW ARRIVAL

Riley Hopkins  |  SKU: FDQZ-18X18
$1,99995 $2,99595
Flat rate
multi-qty message
In stock
DESCRIPTION

The Riley Flash Quartz Dryer is a professional-grade flash cure unit engineered for screen printers who demand speed, consistency, and precision. Powered by quartz tube heating technology, this dryer delivers rapid on-off responsiveness, making it ideal for high-efficiency shops and sensitive fabrics. With advanced heat control and fast recovery times, the Riley Flash Quartz Dryer ensures reliable gelling without over-curing or scorching garments.

QUARTZ VS INFRARED

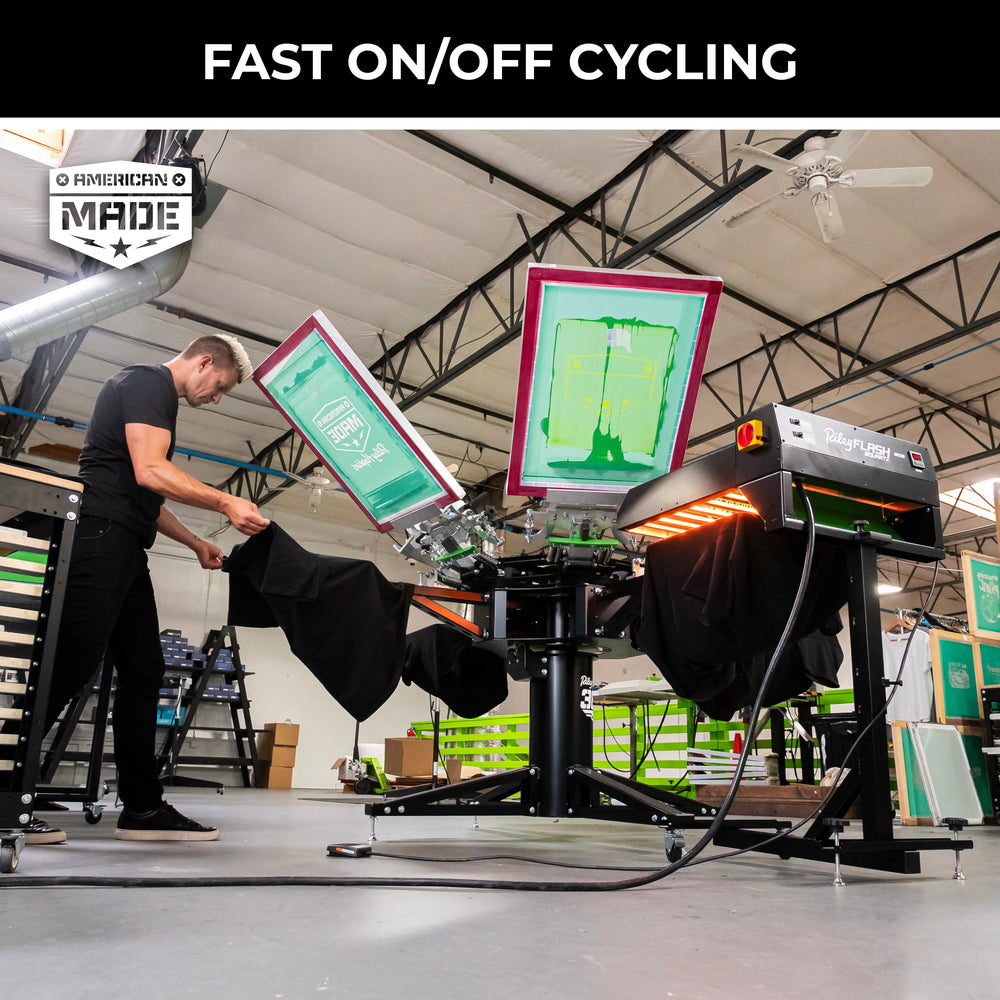

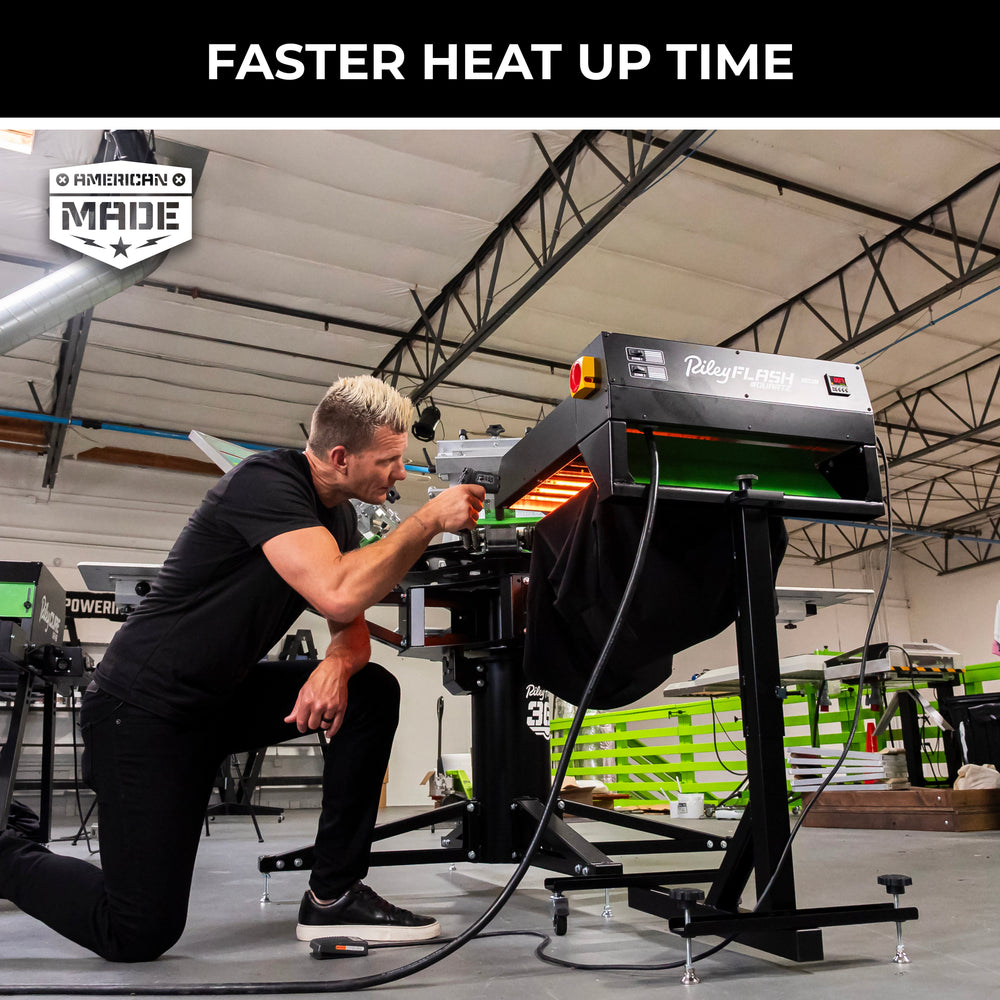

  • Faster Heat-Up Time: Quartz flashes can reach curing temperature in under a second, reducing wait times and allowing for quicker cycle speeds on the press.
  • Energy Efficiency: Because of the fast on-off cycling, quartz flashes consume less energy overall, especially in setups where the flash is idle between prints.

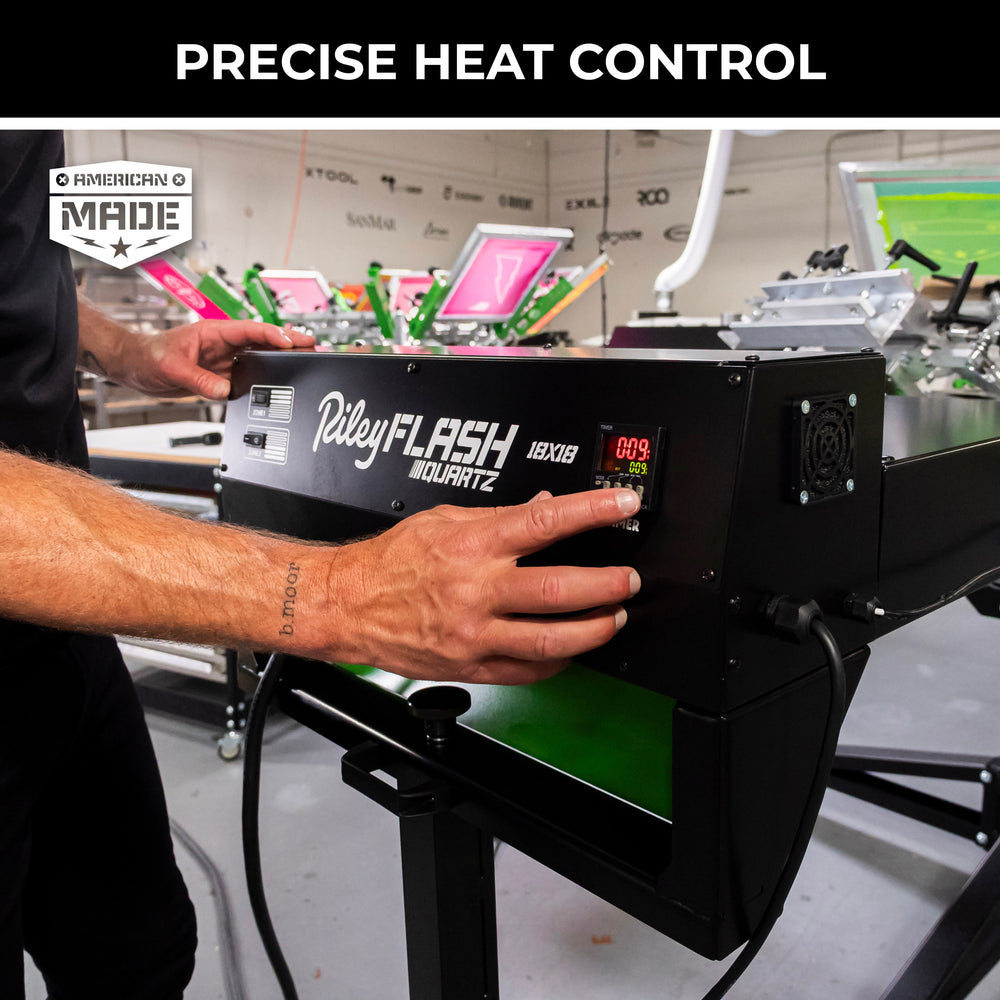

  • Precise Heat Control: Quartz flashes deliver more targeted and consistent heat, which is critical for delicate fabrics or thinner substrates that can be scorched by traditional IR units.

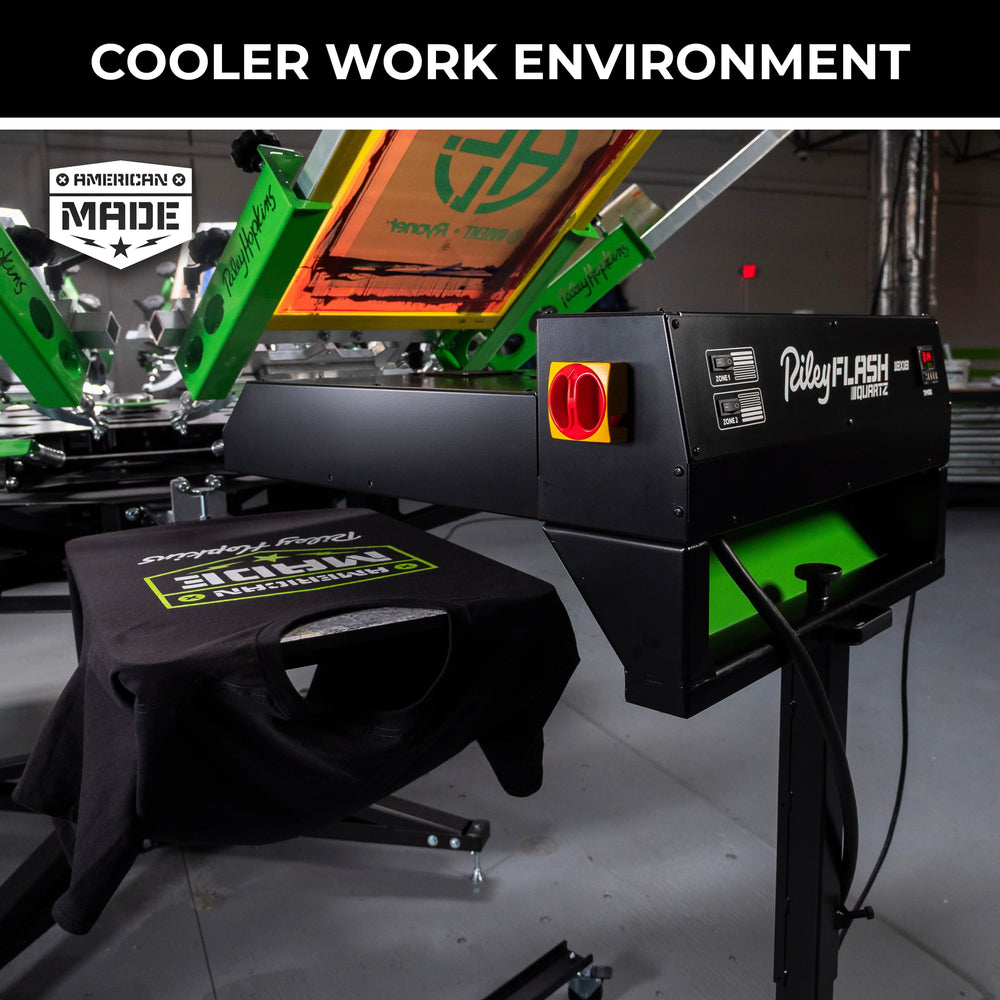

  • Cooler Work Environment: Since quartz units cool rapidly when not in use, they release less ambient heat, contributing to a more comfortable shop climate.

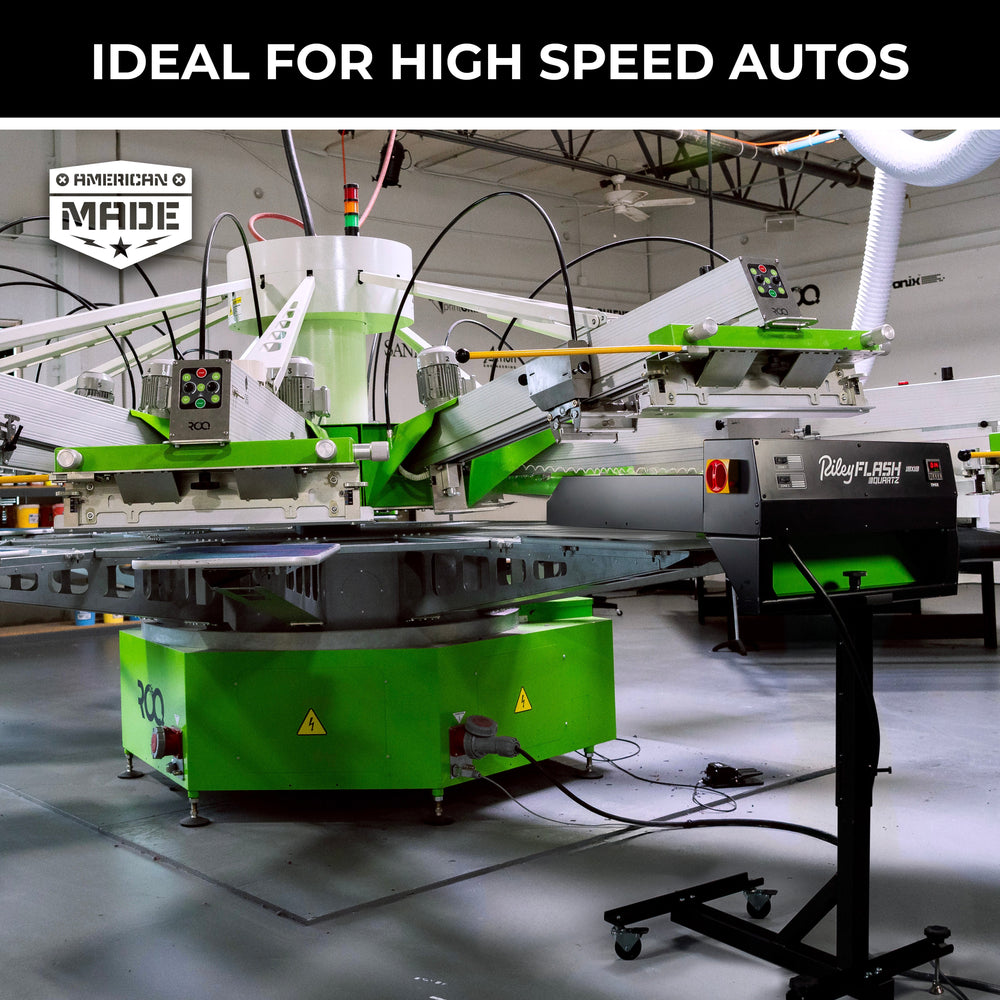

  • Ideal for High-Speed Automatic Presses: Their quick cycling and consistency make quartz flashes perfect for high-volume, automated setups where timing and control are crucial.
FEATURES

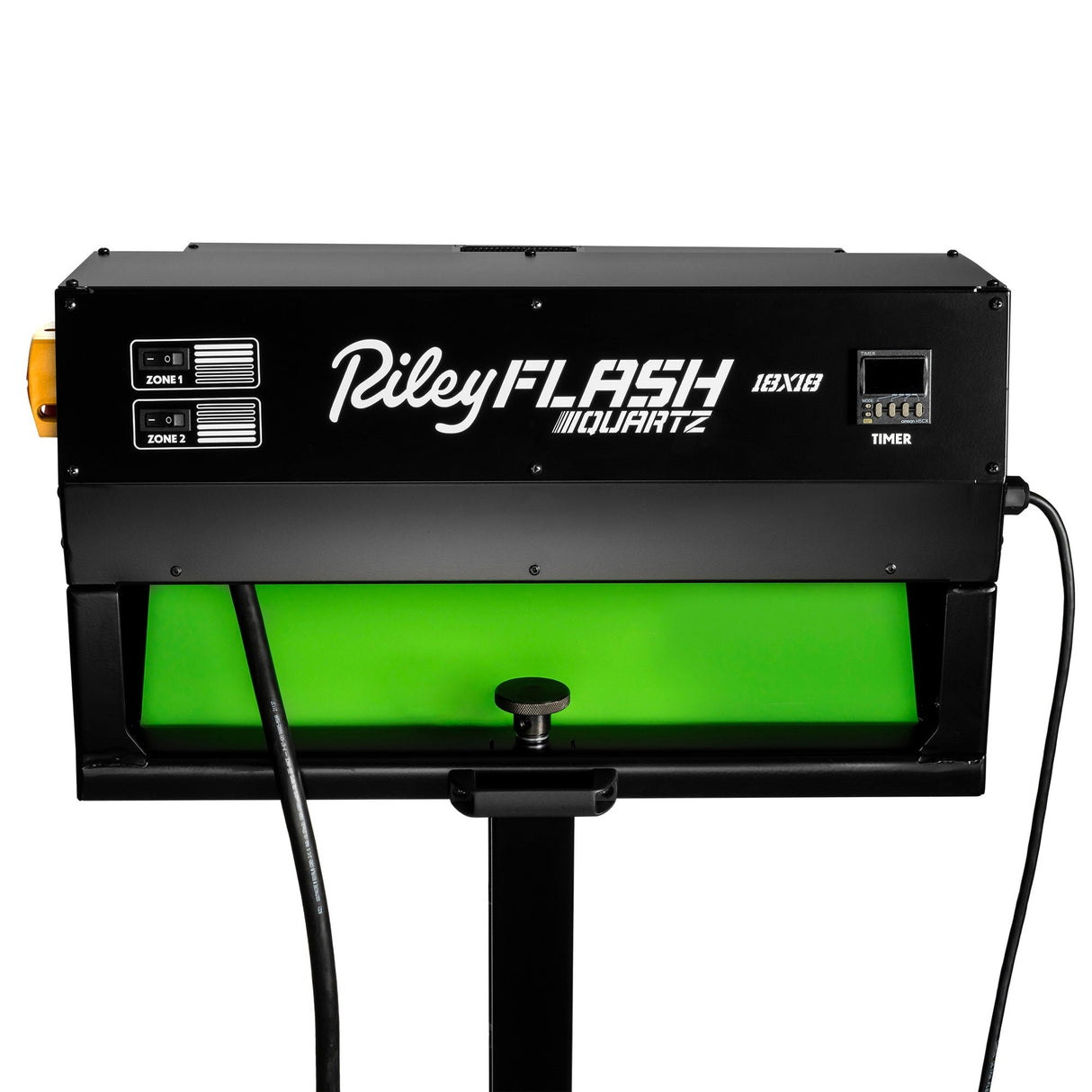

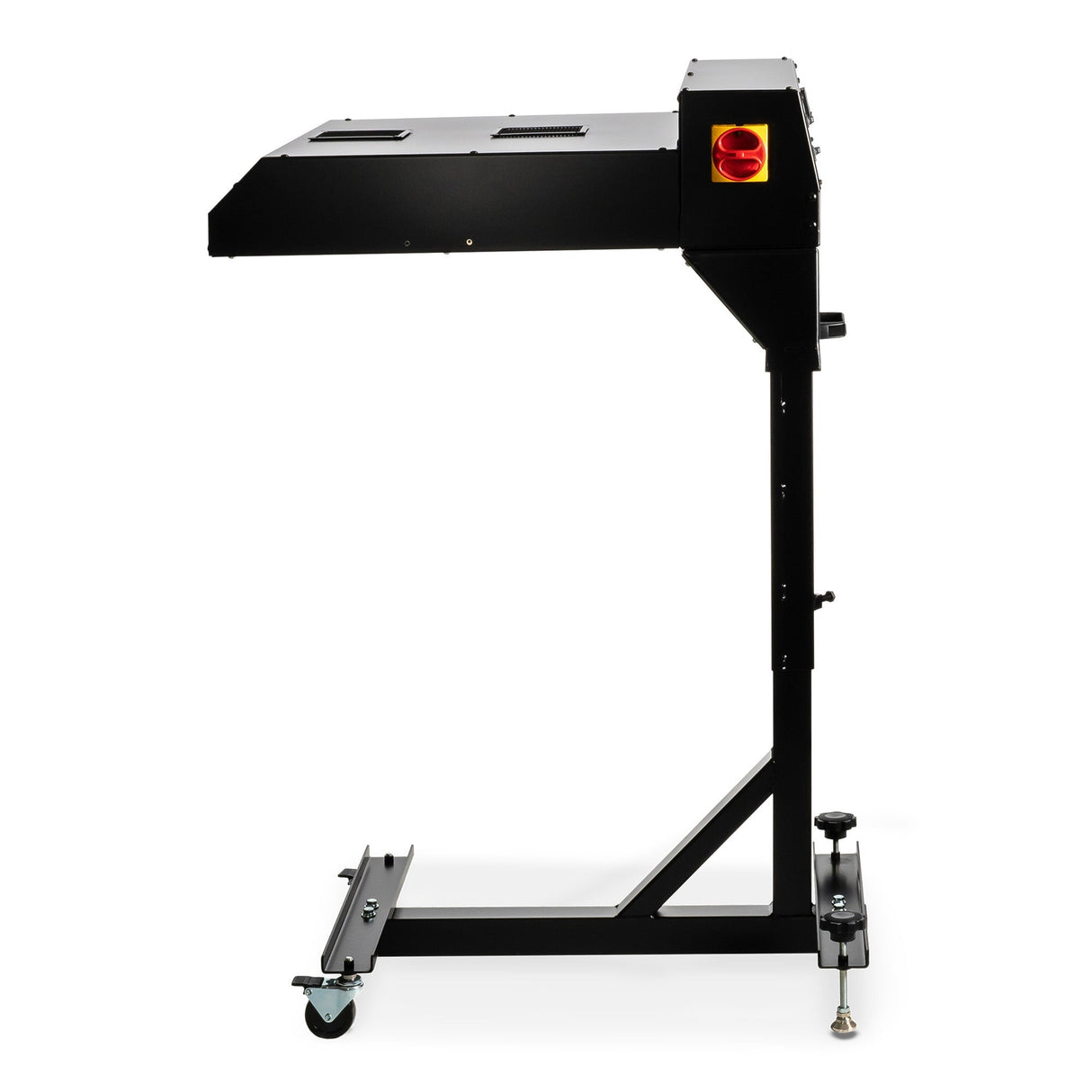

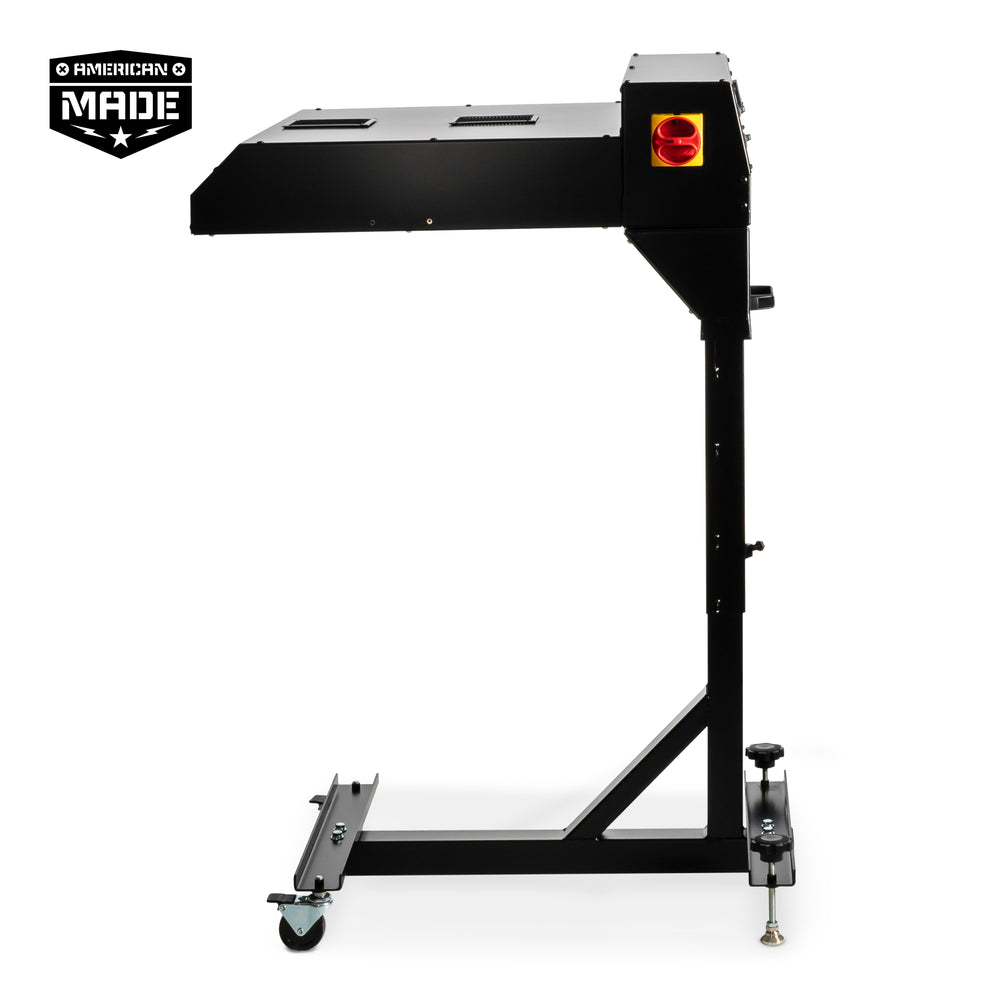

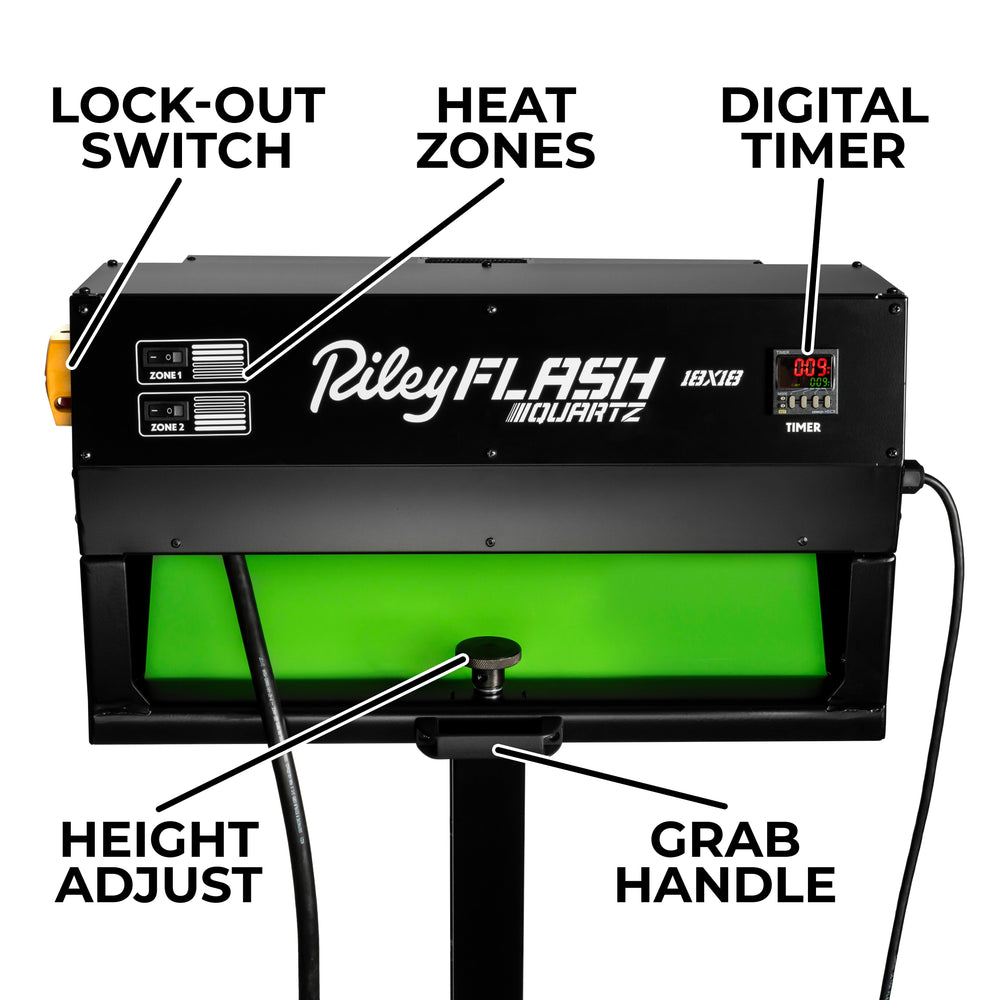

  • Lock-Out Style Disconnect Switch: Panel-mounted for secure and safe power isolation during maintenance
  • Digital Timer: Precisely control your exposure or curing times for consistent results

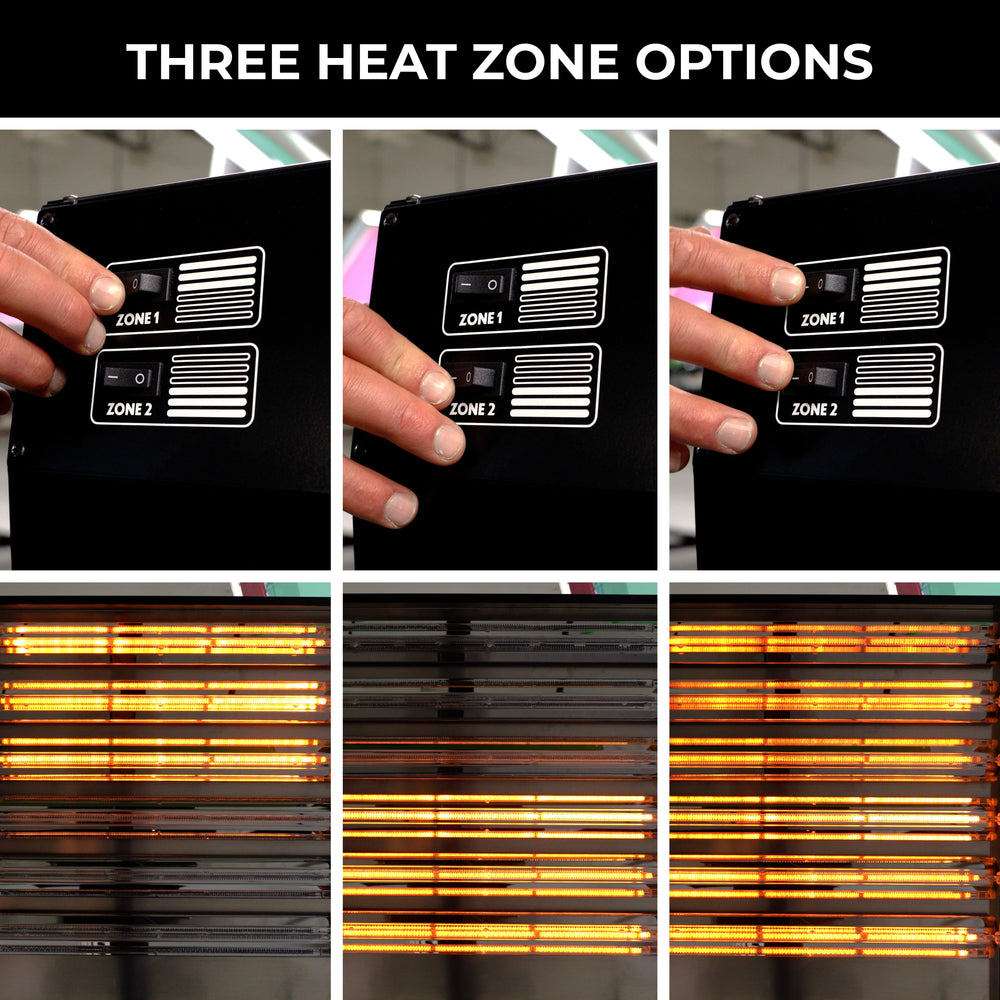

  • Dual Zone Power Control: Two switches control front and rear 3-bulb heating zones independently

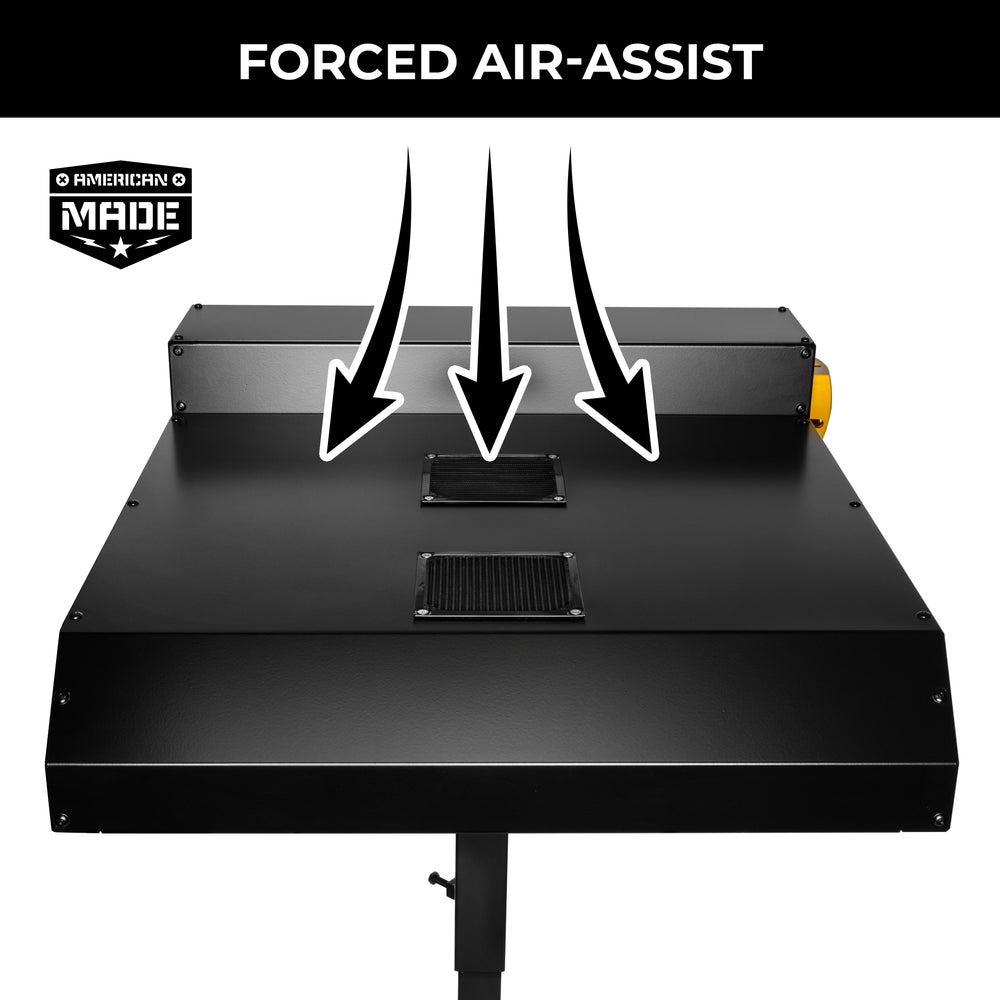

  • Forced Air-Assist: Enhances heat penetration and speeds up curing time

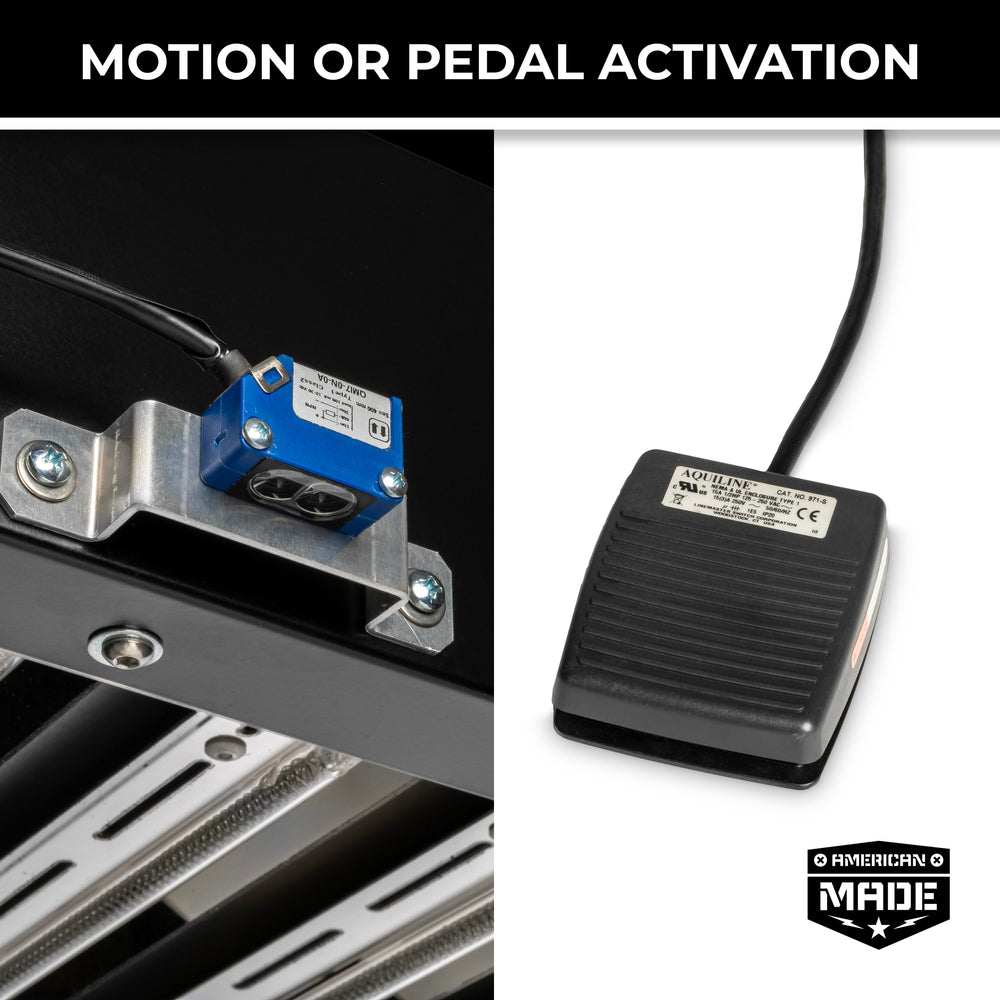

  • Dual Activation: Choose between motion sensor or foot pedal operation for hands-free convenience

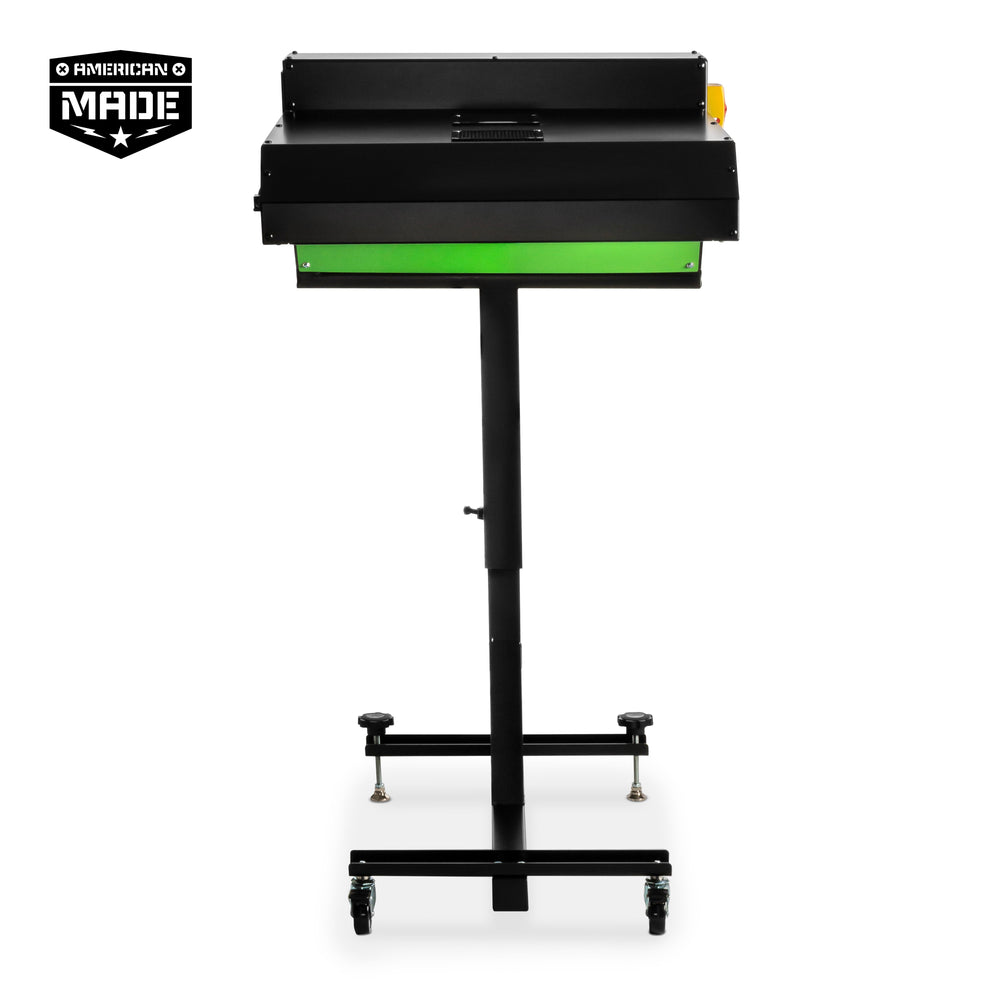

  • Adjustable Heating Panel Height: Set heating element from 35” to 45” from the floor to suit your setup

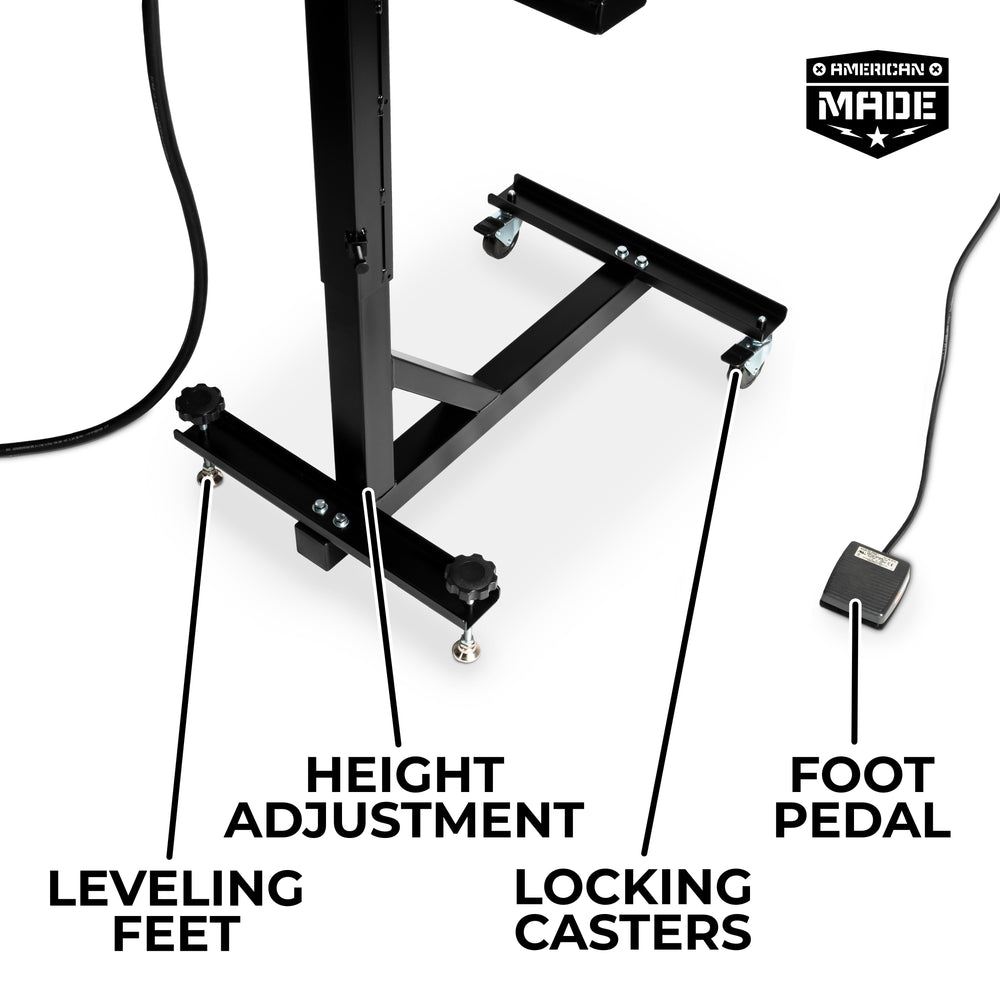

  • Quick Height Adjustment: Easy-to-use knobs make raising or lowering the panel fast and tool-free
  • Locking Casters & Levelers: Two locking swivel casters and two leg levelers keep the unit stable and mobile
  • Grab Handle: Designed for easy relocation around your shop
  • 10-Foot Power Cord: Long reach for flexible placement (plug not included)

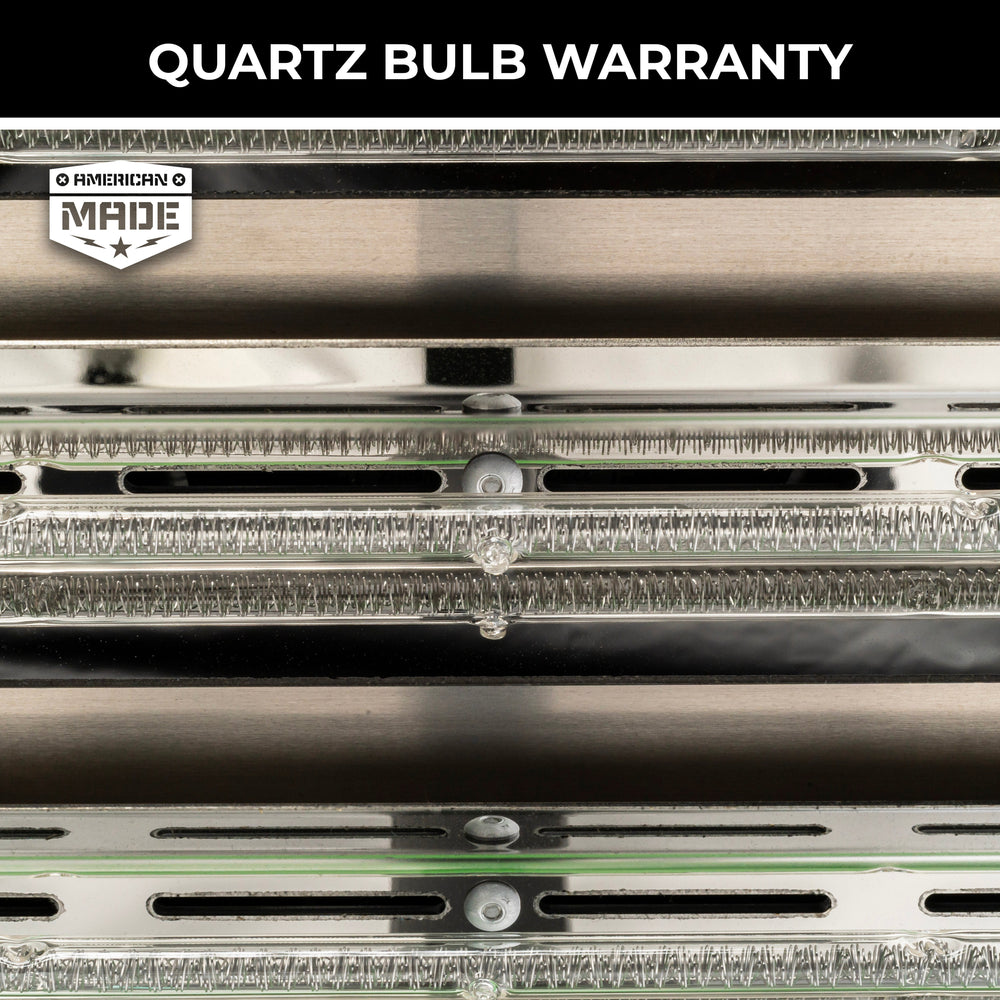

  • Quartz Bulb Warranty: 1-year coverage for the heating elements

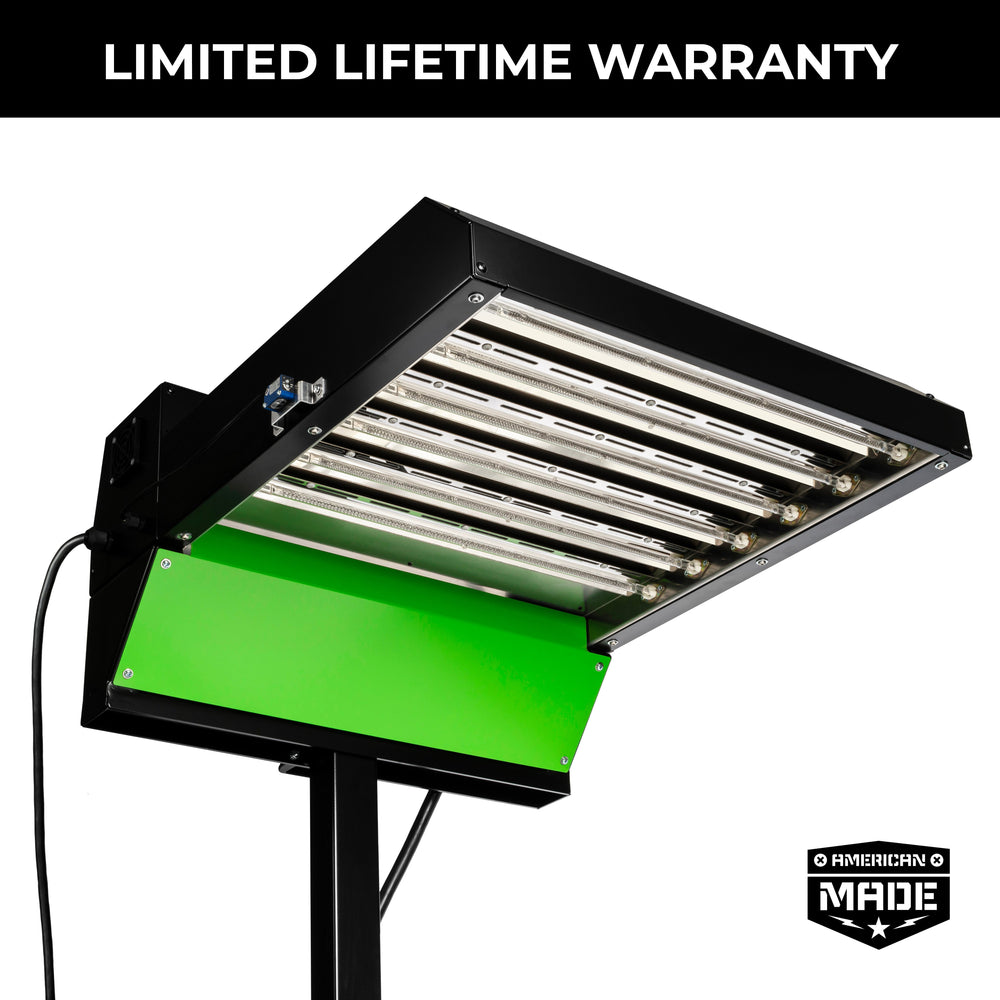

  • Limited Lifetime Dryer Warranty: Coverage for the main dryer structure and components
  • Made in USA 🇺🇸: Built with pride to deliver long-term durability and performance
PRODUCT SPECS

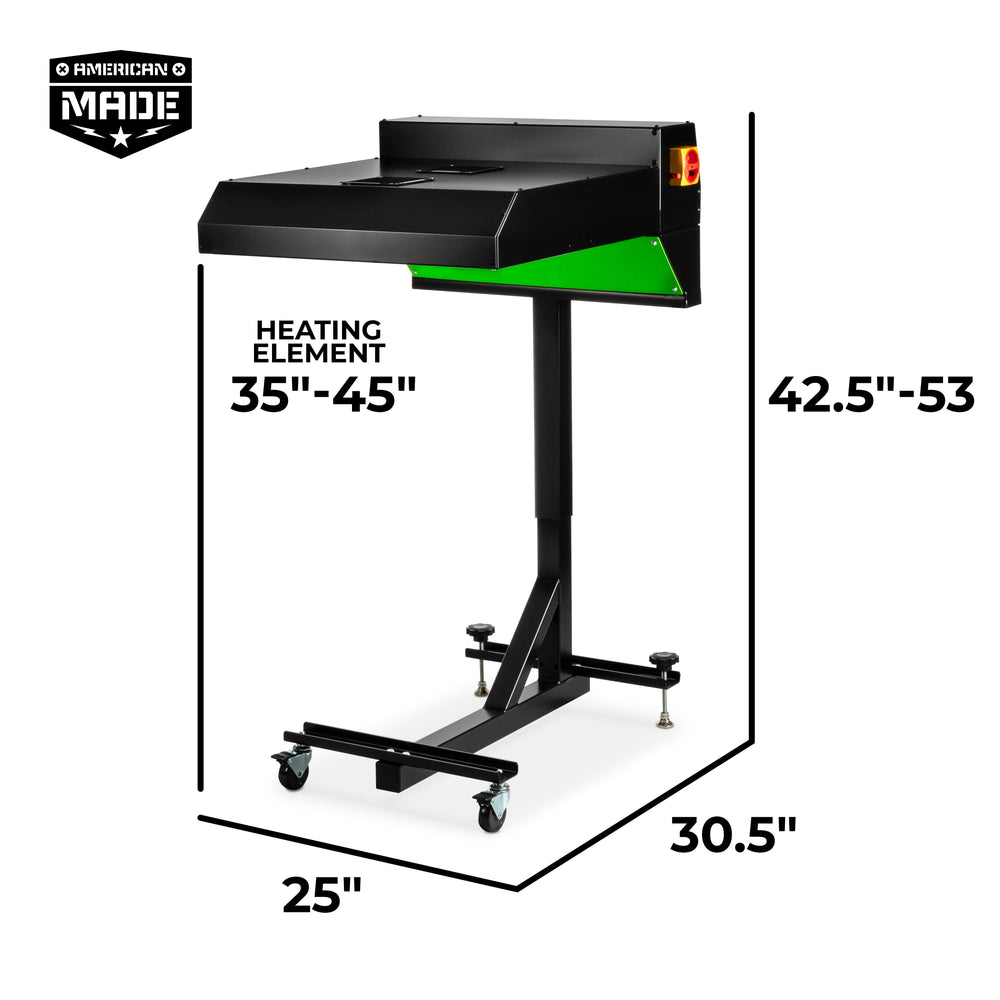

  • Length: 30.5”
  • Hood Width: 24”
  • Overall Width: 25”
  • Min Overall Height: 42.5”
  • Max Overall Height: 53”
  • Number of Bulbs: 6
  • Bulbs per Zone: 3

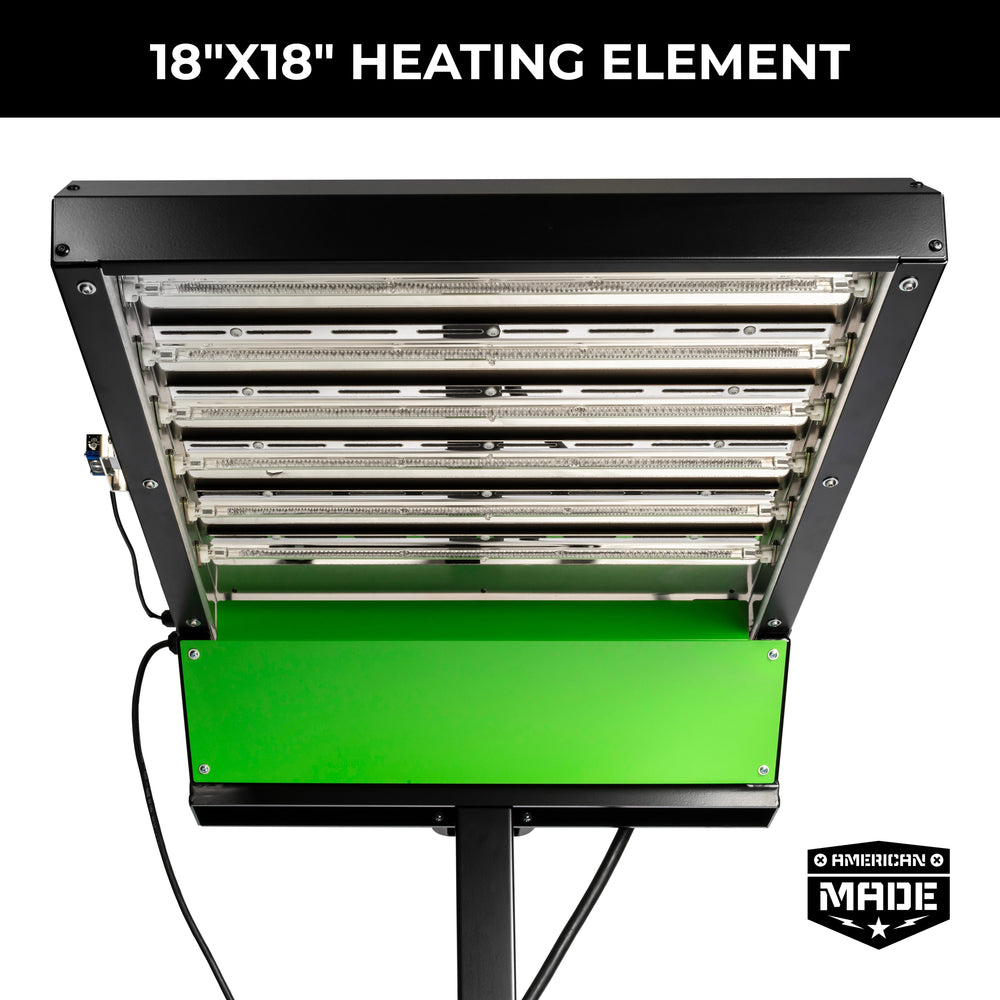

  • Heater Dimensions: 18” x 18”
  • Voltage: 208/240
  • Wattage: 6000/7800
  • Amperage: 28.8/32.5
  • Recommended Plug Type: NEMA L6-30 / NEMA 6-50P
PRODUCT DATA SHEETS
  • COMING SOON
    ABOUT RILEY HOPKINS

    With more than 40 years of developing high-quality & affordable manual screen printing presses, the Riley Hopkins brand has jumpstarted thousands of printers’ careers with presses that are built like race cars. Each press is proudly manufactured in the US, American Made & Made to Last. The lights are flashing green, hit the gas, it's time to kick your screen printing into high gear with Riley Hopkins.

    Riley Hopkins also offers equipment built with the same precision and quality. Surge to the finish line with Riley Hopkins flash units, conveyor dryers and press carts.
