DESCRIPTION

The Bluewater Labs Reclaim Series offers a cutting-edge solution for automating the screen reclaiming process in screen printing operations. Designed to streamline workflow, reduce labor costs, and enhance safety, these inline systems efficiently clean screens from start to finish.

FEATURES
  • Automated Screen Cleaning: The Reclaim Series machines automate the entire screen cleaning process, including high-pressure rinsing, chemical recirculation, flood rinsing, and air knife drying. This automation minimizes manual labor and ensures consistent cleaning results.
  • High Throughput: Models like the Compact (R-2536C) and Standard (R-2536S) can process up to 13 and 25 screens per hour, respectively, making them suitable for shops with varying production volumes.
  • Compact Design: With body widths of 24" or 36" and lengths ranging from 71" to 120", these machines are designed to fit into different workspace configurations while maintaining efficiency.
  • Energy and Resource Efficiency: The systems are engineered to use minimal chemicals and water, thanks to features like recirculation tanks and efficient rinsing mechanisms, promoting sustainable operations.
  • Customizable Options: Optional features such as infeed soak tanks and outfeed booths allow for customization based on specific cleaning requirements and workflow preferences.

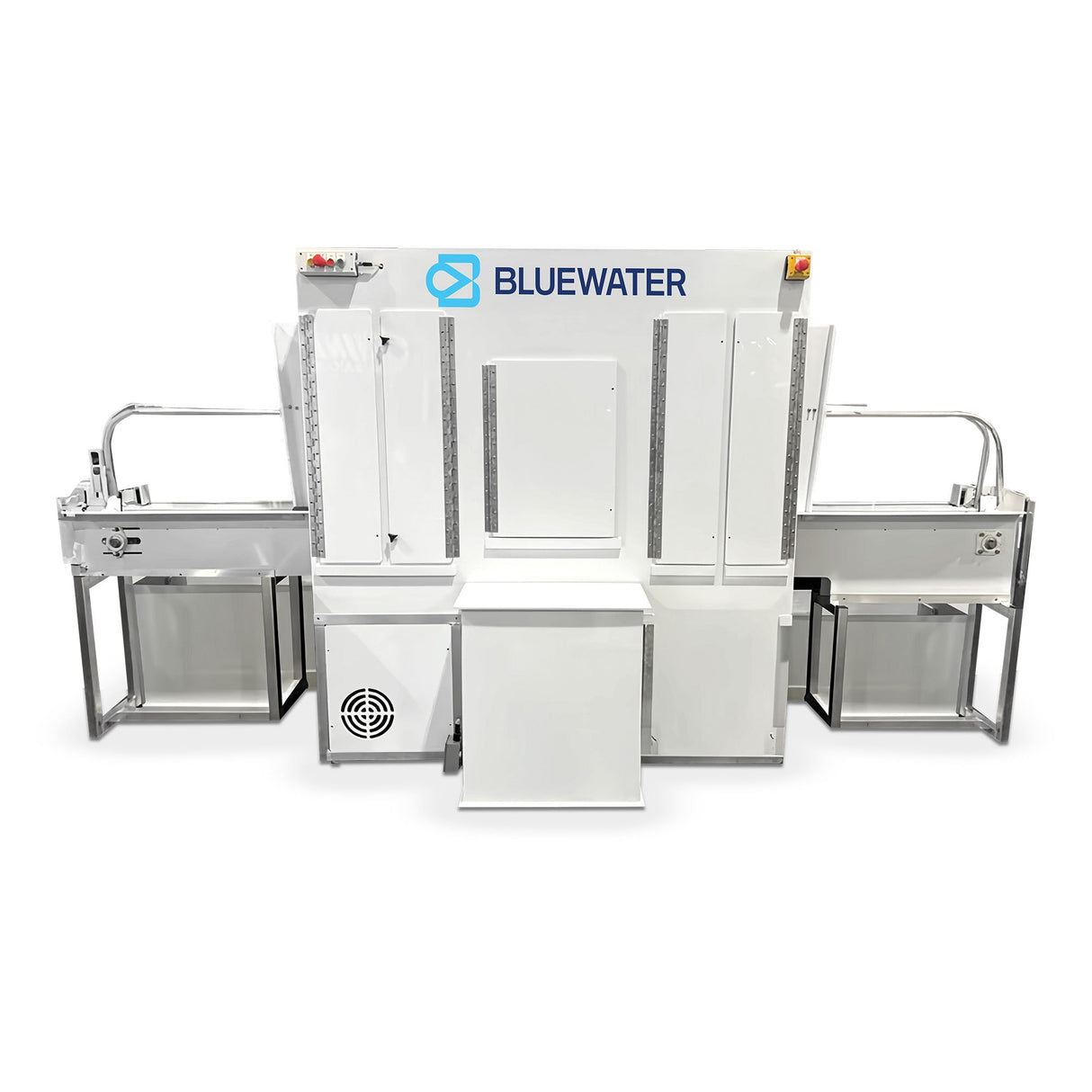

COMPACT SPECS
  • Body Width: 24" or 36" with recirculation tank
  • Body Length: 71.0"
  • Body Height: 75.0"
  • Screens Per Hour: 13 Screens per hour


Machine Requirements

  • Air: 8 cfm @ 100psi
  • Electrical: 208/230V, 3ph, 24A, 50/60Hz 208/230V, 1ph, 44A 50/60Hz
  • Water: 1 x 1" NPT Standard Fitting
  • Drain: 3/4" or 1 1/4" NPT Utility Pump
  • Max Frame Size: 25" x 36"
  • Minimum Machine Length: 12'3"


Machine Options

  • Infeed Length: 36"
  • Outfeed Length: 36"

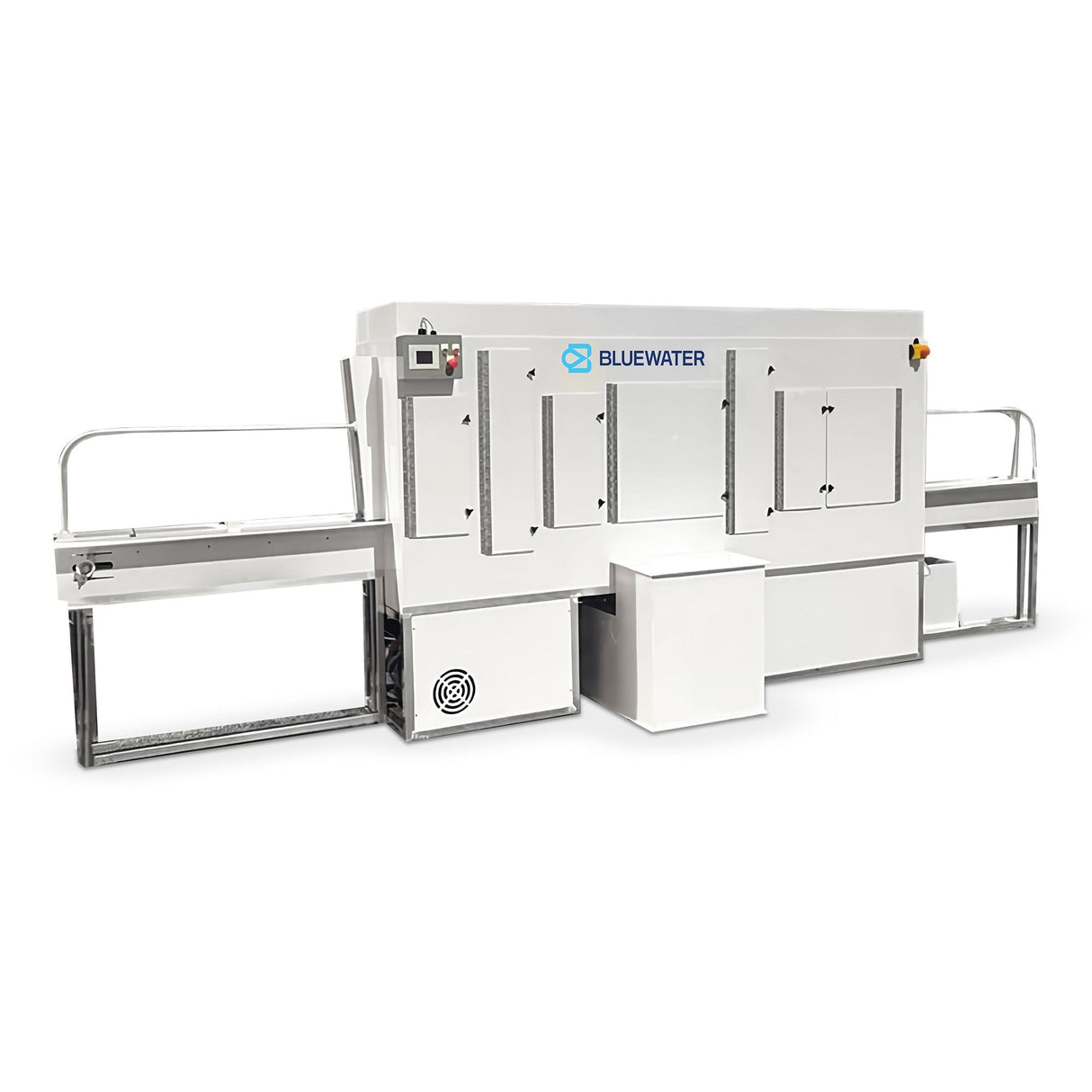

STANDARD SPECS
  • Body Width: 24" or 36" with recirculation tank
  • Body Length: 120.0"
  • Body Height: 75.0"
  • Screens Per Hour: 25 Screens per hour


Machine Requirements

  • Air: 8 cfm @ 100psi
  • Electrical: 208/230V, 3ph, 60A, 50/60Hz
  • Water: 1 x 1" NPT Standard Fitting
  • Drain: 3/4" or 1 1/4" NPT Utility Pump
  • Max Frame Size: 25" x 36"
  • Minimum Machine Length: 18'6"


Machine Options

  • Infeed Length Options: 54" or 72"
  • Outfeed Length: 47" or 94"
  • Infeed Soak Tank: Optional Upgrade (adds 44.0")
  • Outfeed Booth: Optional Upgrade (adds 60.0") * outfeed length 24"

By integrating the Bluewater Labs Reclaim Series into your screen printing process, you can achieve faster turnaround times, consistent screen quality, and a safer working environment.
