Riley Pro Plus Complete Screen Printing Shop Package
Shipping Transit Time
If you're looking to get into the screen printing business or expand a small screen printing operation into a full scale production, the Riley Pro Plus Complete Shop Package is right up your alley. It includes everything you would see in any full scale screen printing shop.
This Kit Includes
- Riley 350 8-color, 6-station Press
- RileyCure 6500 watt 8' conveyor dryer
- 18" x 18" Riley Hopkins infrared flash dryer
- X-Vactor 25" x 36" vacuum exposure unit
- KB-32 wash out sink
- Ryonet Eco Dunk Tank and solution
- Aluminum Screen Frame Rack

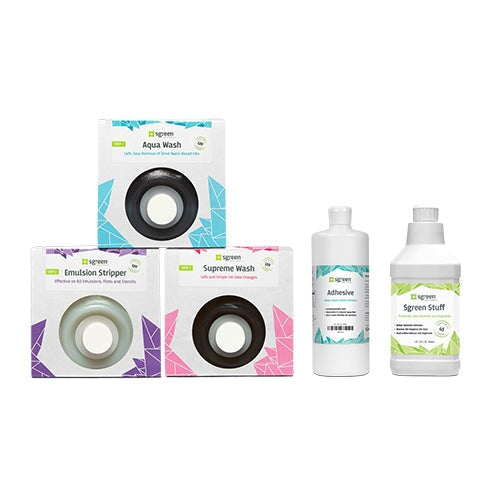

- Sgreen Green Chemical Kit
Riley 350 8 color, 6 Station Printing Press
Ryonet's NEW Riley 350 is the next big evolution in heavy duty manual printing presses. With a sturdy, time-tested Riley Hopkins® construction and exclusive compatibility with ROQ's strong but featherweight honeycomb aluminum pallets, the Riley 350 can handle any print job while running at maximum manual speeds. Features like tool-free off-contact adjustments and XYZ micro registration come standard and allow you to quickly set up and adjust your press with the same ease as any ROQ automatic screen printing press. If Speed, Precision, and Consistency are important for your customer's needs, it's time to get behind the wheel of the Riley 350. The lights are flashing green, hit the gas, it's time to kick your screen printing into high gear.
Features and Benefits
- Sturdy, heavy duty, lightweight construction.
- XYZ: Micro registration
- Tool-Free adjustments
- Honeycomb pallets
- Adjustable Height Mechanism
- 2-Point Roller Gate
- 2-year limited warranty
- Diameter: 113"
- Base Size: 57"
- Platen Height: 35.5" - 36.5"
- Platen Size: 16"x 24"
- Max Platen Size: 24" x 32"
- Max Frame Size: 25" x 36"
- Max Frame Size(every other): 42" x 48"

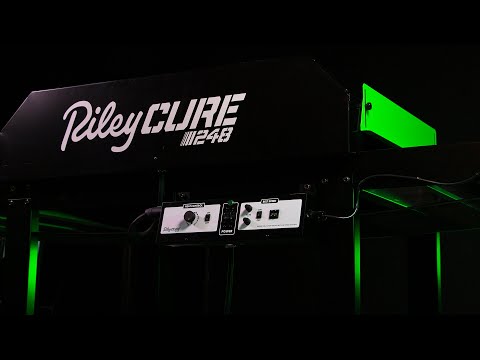

RileyCure 6500 watt 8' Conveyor Dryer
The RileyCure is the most affordable 8 foot dryer on the market today and with an output rating over 200 shirts per hour! The RileyCure features 2 independently controlled 18" x 24" 3050 watt heat elements, a 4 foot tunnel, 24" width belt, adjustable gates for optimal heat retention, belt speed control and a special track free belt. It's high powered, compact and even ships without any additional crate fees.
- Length: 96"
- Width: 34"
- Height: 41"
- Belt width: 24"
- Belt height: 30.3"
- Belt drive: 120V
- Belt speed: 1-12 fpm
- Chamber length: 48"
- 2 heat elements of 3050 watts each
- Element voltage of 208 or 240
- Wattage 6500 at 240volt
- Amps 27
- Plug is a NEMA L6-30P
- 3 year warranty

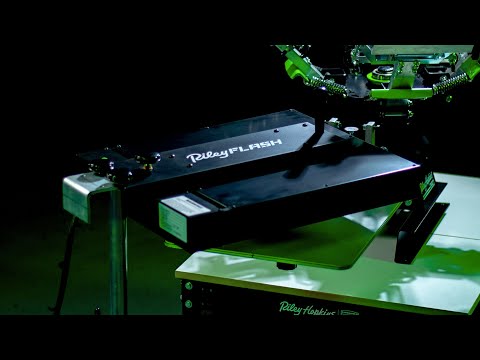

18" x 18" Riley Hopkins Infrared Flash Dryer
Features and Benefits
- Fully capable of fully curing plastisol ink
- Adjustable height with rotating capabilities
- Quality IR panel for overall consistent heat across a 18" x 18" area
- Comes with wheels for easy use and mobility
- Plugs into a 20 amp wall outlet
- Comes with a 3 year warranty
- This flash comes with an on/off switch. Plug and Go.

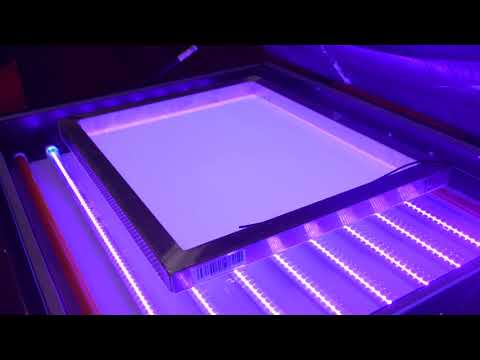

X-Vactor 25" x 36" Vacuum Exposure Unit
Features and Benefits
- Extremely flexible and durable rubber vacuum blanket
- Heavy-duty gas shocks for easy open and close access
- Adjustable vacuum lid clamps
- Optically clear extremely strong tempered glass
- Sturdy T5 extremely strong aluminum construction
- Oil free vacuum pump is quiet and powerful
- Includes nylon rope to allow air movement between blanket and frame
- UL certified electrical components
- 3 year limited warranty (excludes blanket, glass and bulbs)
- Made in the USA
- Assembly instructions and maintenance DVD included
- Light safe inspection bulbs
- Overall size: 48"(length) x 32"(width) x 9"(height)
KDL Back Lit WashOut Sink
Screen prep, image wash out and reclaiming are all key factors to maintain a clean shop. A washout sink is a key tool in your screen shop because it allows you to contain your messes and helps prevent contamination. The back light feature of this booth will also insure crisp image washout and save you from missing the fine details often missed during image washout. The KDXL Back Light Washout Sink measures 36" wide x 24" deep.
Film Output Supplies and AccuRip Software
This Kit Includes
- Epson P400 Film Output printer w/ UltraChrome Inks
- AccuRIP software (serial code, no disc)
- Rite Film 13" x 19" pack - 100 sheets
Ryonet Eco Dunk Tank and Solution
The Ryonet Eco Dunk Tank is a simple, affordable and durable dip tank. The Eco Dunk Tank is made from 100% recycled material and environmentally friendly. This heavy-duty tank is the best built soaking systems made specifically for the purpose of screen reclaiming. Polyethylene is an ideal material for 2-in1 ink/emulsion removers.Ê
Screen Frame Rack
Now you can store your screens off the floor with one of our aluminum screen frame racks. No more dust, dirt or fibers getting stuck in your emulsion. Our aluminum screen frame rack holds 10 screens and keeps them evenly spaced for maximum airflow for faster drying times. This rack will accommodate 20" x 24" and 23" x 31" screens in wood and aluminum.
Complete Product and Chemical Kit
- 6 - 110 mesh 23" x 31" aluminum screens
- 6 - 156 mesh 23" x 31" aluminum screens
- 6 - 230 mesh 23" x 31" aluminum screens
- 6 - 305 mesh 23" x 31" aluminum screens
- 2 Plastisol Inks - Wilflex Epic Lava Ink - (Gallons of Lava Perfect White and Lava Black)
- 11 Plastisol Inks - Wilflex Epic Lava Ink - (Quarts of Lava Royal Blue, Lava Golden Yellow, Lava Orange, Lava Purple, Lava Red, Lava Lime Green, Lava Lemon Yellow, Lava Teal, Lava Light Blue, Lava Pink and Lava Kelly Green)
- 4 Plastisol Inks - Wilflex Epic Process CMYK - (Quarts of Cyan, Magenta, Yellow and Black)
- 2 Water Based Inks - Green Galaxy Ink (Quarts of Pitch Black and Neptune Blue)
- 1 quart Curable Reducer
- Wilflex Epic Rio Mixing Kit - Gallon
- Pantone Mixing Guide
- AWS Digital Mixing Scale (2000 gram capacity)
- 20 Quart containers for mixing
- Digital non-contact thermometer
- 15 - ink scoops for easy ink handling
- 1 - roll of 18" x 100yrd Pallet Protect Tape
- 8 - 15" squeegees
- 8 - 12" squeegees
- 4 - 8" squeegees
- 4 - 6" squeegees
- 1 - 16" emulsion scoop coater
- 500 black test square / printing pellon 14" x 16"
- 500 white test square / printing pellon 14" x 16"
- 1 20oz can of screen opener
- 3 - 2" X 36 yds. blue screen tape
- 10 pack Ultimate Cleanup Cards
- 1 light safe yellow bulb
CCI Large Textile Chemical Kit
- 1 gallon RXP Dual Cure Emulsion
- 1 gallon Ryonet Textile Press Wash
- 1 quart Envirowash
- 8 oz. Ryonet Emulsion Remover (concentrate)
- 1 quart Green Stuff
- 8 oz. Green Hand Cleaner
- 1 can Ryonet Spray Mist
- 1 gallon Spot remover with Ryonet Spot Gun
- 8 oz. Red Block-Out
- 3 chemical resistant spray heads
- 1 chemical resistant spray bottle
- 3 chemical resistant scrub brushes
